Description

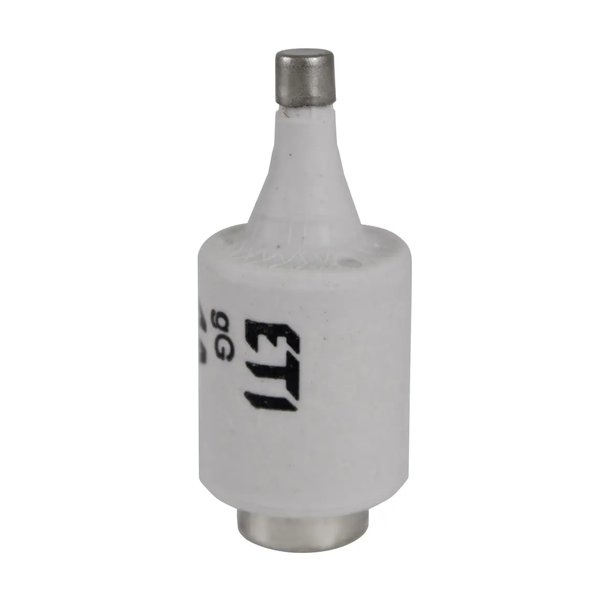

ETI 002312403 — D-System Fuse Link Link Dll. Manufacturer designation: Dii gg 6A/500V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | DII gG 6A/500V |
| Article No. (MPN) | 002312403 |
| Product Category | Distribution & Installation |
| Product group | D Low voltage Fuses |
| Application | For cable protection |
| Size | DII |
| Time-current characteristic | gG |
| Rated AC voltage | 500 V |
| Rated DC voltage | 250 V |
| Rated current | 6 A |
| Power dissipation | 2.2 W |
| Breaking capacity AC | 50 kA |
| Breaking capacity DC | 8 kA |
| Indicator | Top fuse status indicator |
| Standards | DIN EN 60269-1, DIN EN 60269-3 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
