Description

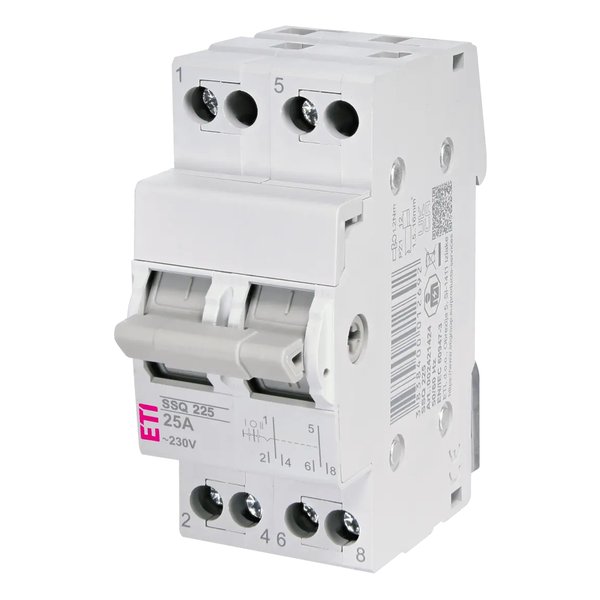

ETI SSQ 225. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | SSQ 225 |
| Article No. (MPN) | 002421424 |
| Product Category | Distribution & Installation |
| Rated AC voltage | 400 V |
| Standards | 60947-3 |
| Utilization category | AC-22B |
| Max. input cross-section | 16 mm² |
| Function | SSQ Modular Changeover Switches I-0-II |
| Application | Switching power sources in the event of a |
| Indicator | Visual contact position indication |
| Voltage type | AC |
| Supply voltage | 230-400 V |
| Rated frequency | 50/60 Hz |
| Rated current | 25 A |
| Max. contact current | 25 A |
| Rated cross section | 1.5-16 mm² |
| IP rating | IP20 |
| Type of installation | DIN rail 35 mm |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
