Description

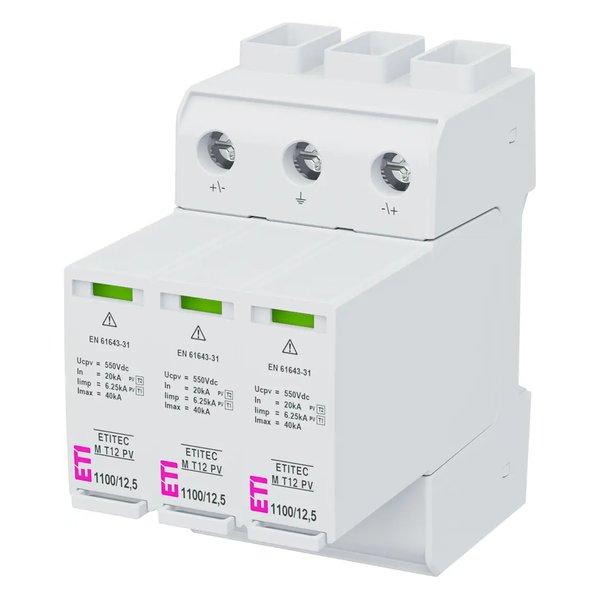

ETI ETITEC M T12 PV 1100/12,5 Y RC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | ETITEC M T12 PV 1100/12,5 Y RC |
| Article No. (MPN) | 002440512 |
| Product Category | Distribution & Installation |
| Function | SPD |
| Current type | DC |
| Core | 35 mm² |
| Surge arrester type | T1, T2 |
| Continous operating voltage DC Uc | 1,100 V |
| Iimp(10/350) impulse current | 6.25 kA |
| Iimp – Total Impulse Current (10/350) | 12.5 kA |
| Up – Voltage protection level | 3.8 kV |
| Network system | DC |
| Installation | PV protection |
| Built-in depth | 86 mm |
| Applied technology | MOV |
| IP rating | IP20 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
