Description

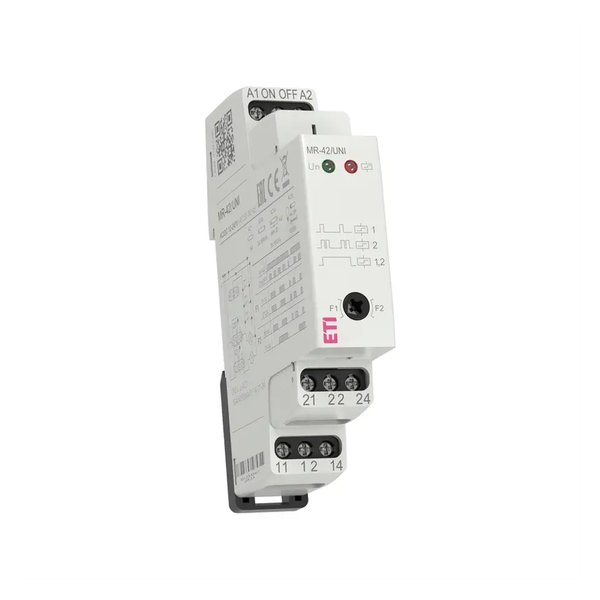

ETI MR-42 UNI. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | MR-42 UNI |
| Article No. (MPN) | 002470008 |
| Product Category | Distribution & Installation |
| Rated operational current Ie at AC1 | 16 A |
| Rated operational power at AC1 | 16 kW |
| Catalogue subgroup | Memory relay |
| Rated frequency | 50/60 Hz |
| Overvoltage category | III |
| Standards | EN 60669-2-2, EN 61010-1 |
| Type of installation | DIN rail 35 mm |
| IP rating | IP40 |
| Rated cross section | 2.5 mm² |
| Max. inrush current | 30 A |
| Switching voltage | 250 V |
| Electrical cycles | 70,000 |
| Storage temperature | -30-70 °C |
| Working temperature | -20-55 °C |
| Type description | Memory and latching relays MR-41, MR-42 |
| Function | Memory relay |
| Supply voltage | 12-240 V |
| Rated current | 2/16 A |
| Voltage type | AC/DC |
| Category | Memory and latching relays MR-41, MR-42 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
