Description

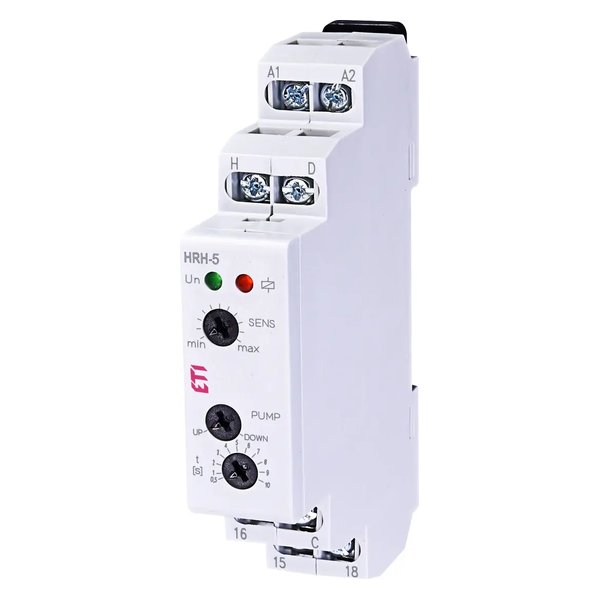

ETI HRH-5. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | HRH-5 |
| Article No. (MPN) | 002471715 |
| Product Category | Distribution & Installation |
| Function | Monitoring and Control relays |
| Application | Provides liquid level monitoring in tanks, wells |
| Type of control | Monitoring levels |
| Supply voltage | 24-240 V |
| Voltage type | AC/DC |
| Max. contact current | 8 A |
| Rated current | 8 A |
| Max. load capacity at AC1 | 2,000 VA |
| Clamping cross-section | 0.5-2.5 mm² |
| Type of installation | DIN rail 35 mm |
| IP rating | IP10, IP40 |
| DC rated control supply voltage Uc | 24-240 V |
| Type of contacts | 1xCO |
| To use with | Współpracuje z sondami poziomu cieczy serii |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
