Description

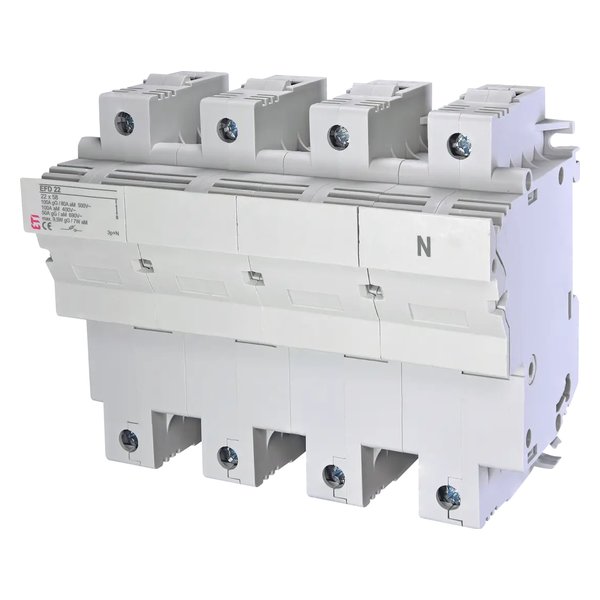

ETI EFD 22 3p+N. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | EFD 22 3p+N |
| Article No. (MPN) | 002570005 |
| Product Category | Distribution & Installation |
| To use with | CH fuse-links |
| Product group | LV-fuse-switch disconnector |
| Overvoltage category | III |
| Type description | EFD |
| Size | 22×58 |
| Type of installation | DIN rail 35 mm |
| Number of poles | 3+N |
| Rated AC voltage | 690 V |
| Utilization category | AC-22B |
| Rated current | 100 A |
| Ambient temperature | -5/40 °C |
| Standards | IEC 60947-1, IEC 60947-3 |
| Application | Residential and industrial installation |
| IP rating | IP20 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
