Description

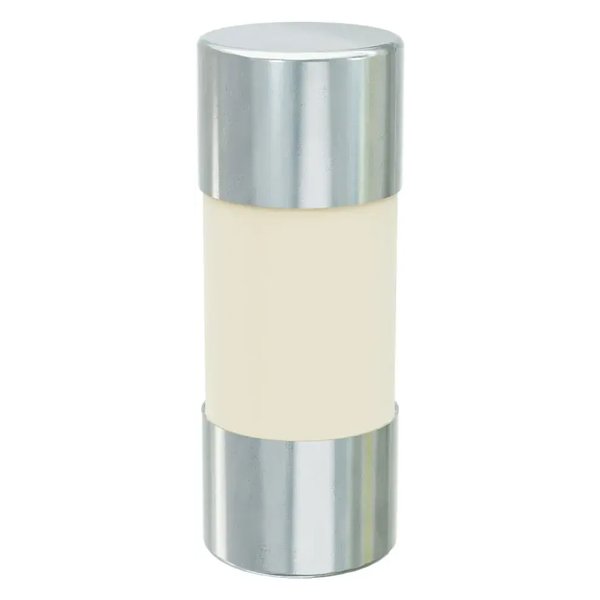

ETI CH22x58/P aR 25A/690V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | CH22x58/P aR 25A/690V |
| Article No. (MPN) | 002645113 |
| Product Category | Distribution & Installation |
| Product group | Semiconductor Protection |
| Fuse type | CH |
| Type description | CH |
| Size | 22×58 |
| Rated current | 25 A |
| Time-current characteristic | aR |
| Indicator | Striker pin status indicator |
| Rated AC voltage | 690 V |
| Rated DC voltage | 500 V |
| Breaking capacity AC | 200 kA |
| Breaking capacity DC | 50 kA |
| Power dissipation | 5.6 W |
| Operating joule integral (A2s) | 410 |
| Standards | IEC 60269-4 |
| Application | For protection of semiconductor devices |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
