Description

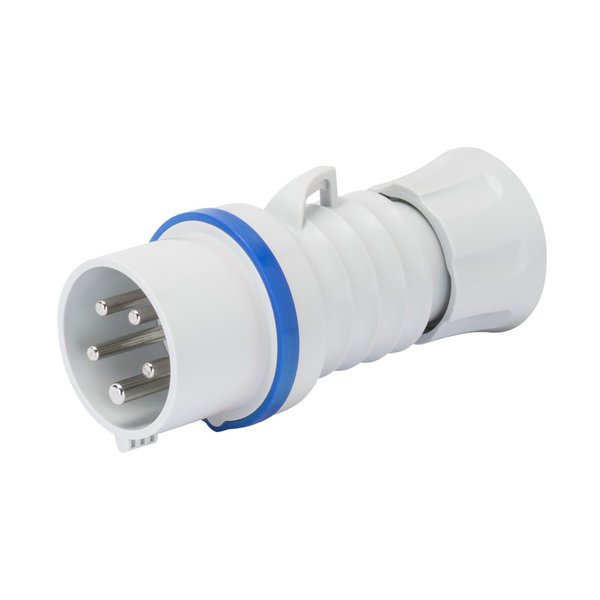

Gewiss GW60005WH — Straight Plug With Fase Inverter. Manufacturer designation: Straight plug HP – with fase inverter – IP44/IP54 – 3P+E 16A 200-250V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW60005WH |
| Product Category | Plugs & Sockets (CEE) |
| Colour | Blue |
| Rated current (A) | 16 |
| IP degree | IP44/IP54 |
| No. of poles | 3P+E |
| Mechanical resistance | IK09 |
| Rated voltage | 200 – 250 V |
| Type | Straight plugs with phase inverter |
| Frequency | 50/60 Hz |
| Terminal tightening capacity | 1-2.5 mm² flexible cables |
| Cable clamp tightening capacity | 7.5-13.8 mm |
| Operating temperature | -25 +55 °C |
| Type of wiring | With screw |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Electrocod | 2230 |
| Glow wire test | 850 °C (active parts) – 650 °C (passive parts) |
| Total number of operations | > 5000 |
| Permissible overload | 22 A |
| Breaking capacity at 1.1 Un | 20 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) – 80 °C (passive parts) |
| Ware Number | 85366990 |
| Condition | New & original |
| Availability | On request |
