Description

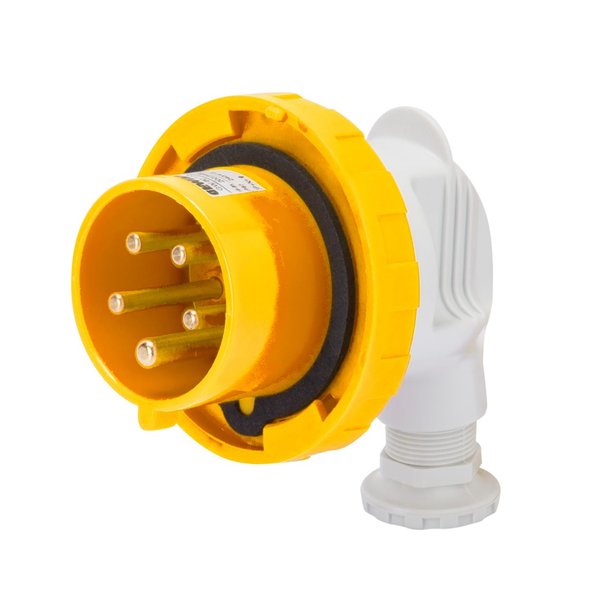

Gewiss GW60117 — 90° Plug IP67. Manufacturer designation: 90° plug – IP67 – 3P+E 32A 100-130V 50/60Hz – yellow – 4H – screw wiri. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW60117 |
| Product Category | Plugs & Sockets (CEE) |
| Colour | Yellow |
| Rated current (A) | 32 |
| IP degree | IP67 |
| No. of poles | 3P+E |
| Mechanical resistance | IK08 |
| Rated voltage | 100 – 130 V |
| Type | 90° plug |
| Frequency | 50/60 Hz |
| Terminal tightening capacity | 2.5-6 mm² flexible cables – 2.5-10 mm² rigid cables |
| Cable clamp tightening capacity | 12.3-19.6 mm |
| Operating temperature | -25 +55 °C |
| Type of wiring | With screw |
| Electrocod | 2231 |
| Glow wire test | 850 °C (active parts) – 650 °C (passive parts) |
| Total number of operations | > 2000 |
| Permissible overload | 42 A |
| Breaking capacity at 1.1 Un | 40 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) – 80 °C (passive parts) |
| Ware Number | 85366990 |
| Condition | New & original |
| Availability | On request |
