Description

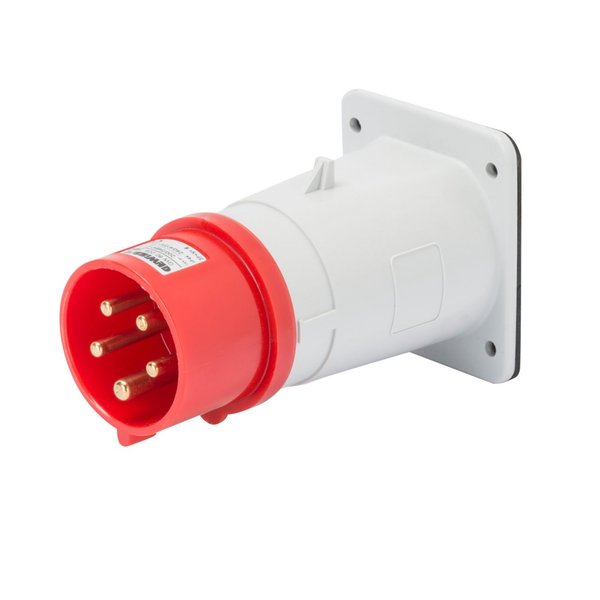

Gewiss GW60209 — Straight Flush Mounting Inlet. Manufacturer designation: Straight flush mounting inlet – IP44 – 3P+N+E 16A 380-415V 50/60Hz – r. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW60209 |
| Product Category | Plugs & Sockets (CEE) |
| Colour | Red |
| Rated current (A) | 16 |
| IP degree | IP44 |
| No. of poles | 3P+N+E |
| Mechanical resistance | IK08 |
| Rated voltage | 380 – 415 V |
| Flange dimensions (mm) | 85×75 |
| Type | Straight flush mounting inlet |
| Frequency | 50/60 Hz |
| Terminal tightening capacity | 1-2.5 mm² flexible cables – 1.5-4 mm² rigid cables |
| Operating temperature | -25 +55 °C |
| Type of wiring | With screw |
| Electrocod | 2230 |
| Glow wire test | 850 °C (active parts) – 650 °C (passive parts) |
| Total number of operations | > 5000 |
| Permissible overload | 22 A |
| Breaking capacity at 1.1 Un | 20 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) – 80 °C (passive parts) |
| Ware Number | 85366990 |
| Condition | New & original |
| Availability | On request |
Download official Gewiss datasheet (PDF)
Independent distributor — not an authorised Gewiss dealer. All parameters are taken from the official manufacturer documentation.
