Description

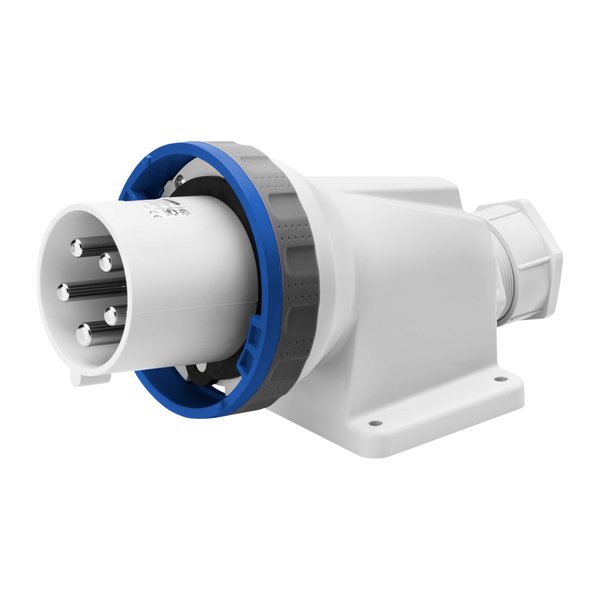

Gewiss GW61449 — 90° Angled Surface. Manufacturer designation: 90° angled surface mounting inlet – IP67 – 3P+E 63A 200-250V 50/60Hz -. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW61449 |
| Product Category | Plugs & Sockets (CEE) |
| Colour | Blue |
| Rated current (A) | 63 |
| IP degree | IP67 |
| Characteristics | Pilot contact |
| No. of poles | 3P+E |
| Mechanical resistance | IK08 |
| Rated voltage | 200 – 250 V |
| Type | 90° angled surface mounting inlet |
| Frequency | 50/60 Hz |
| Terminal tightening capacity | 6-16 mm² flexible cables – 6-25 mm² rigid cables |
| Operating temperature | -25 +55 °C |
| Type of wiring | Mantle terminal |
| Electrocod | 2231 |
| Glow wire test | 850 °C (active parts) – 650 °C (passive parts) |
| Total number of operations | > 2000 |
| Breaking capacity at 1.1 Un | 79 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) – 80 °C (passive parts) |
| Ware Number | 85366990 |
| Condition | New & original |
| Availability | On request |
Download official Gewiss datasheet (PDF)
Independent distributor — not an authorised Gewiss dealer. All parameters are taken from the official manufacturer documentation.
