Description

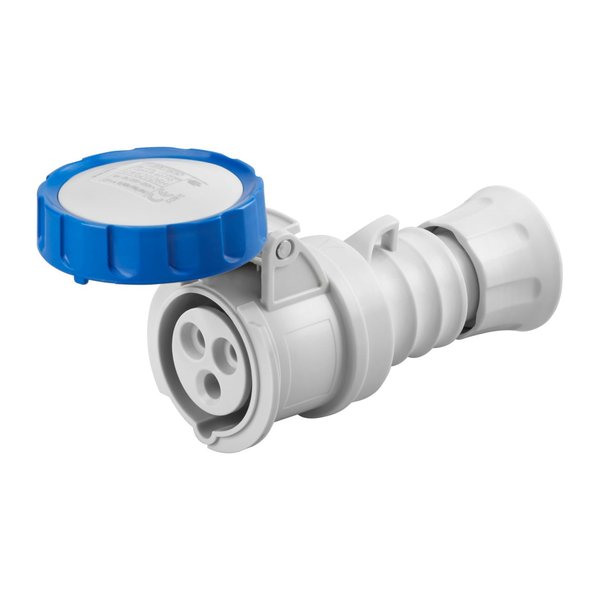

Gewiss GW62026H — Straight Connector. Manufacturer designation: Straight connector HP – IP66/IP67/IP68/IP69 – 2P+E 16A 200-250V 50/60H. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW62026H |
| Product Category | Distribution & Installation |
| Colour | Blue |
| Rated current (A) | 16 |
| IP degree | IP66/IP67/IP68/IP69 |
| No. of poles | 2P+E |
| Mechanical resistance | IK09 |
| Type | Straight connector |
| Rated voltage | 200 – 250 V |
| Frequency | 50/60 Hz |
| Terminal tightening capacity | 1-2.5 mm² flexible cables – 1.5-4 mm² rigid cables |
| Cable clamp tightening capacity | 7.5-13.8 mm |
| Operating temperature | -25 +55 °C |
| Type of wiring | With screw |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Electrocod | 2211 |
| Glow wire test | 850 °C (active parts) – 650 °C (passive parts) |
| Total number of operations | > 5000 |
| Permissible overload | 22 A |
| Breaking capacity at 1.1 Un | 20 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) – 80 °C (passive parts) |
| Ware Number | 85366990 |
| Condition | New & original |
| Availability | On request |
Download official Gewiss datasheet (PDF)
Independent distributor — not an authorised Gewiss dealer. All parameters are taken from the official manufacturer documentation.
