Description

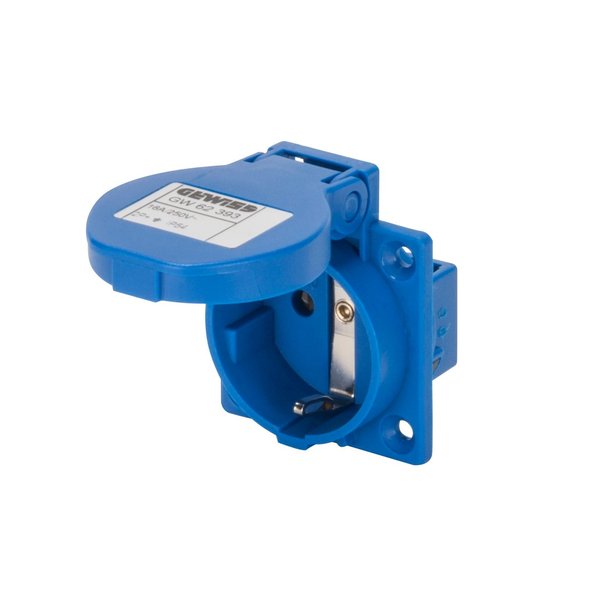

Gewiss GW62393 — Schuko Socket Outlet. Manufacturer designation: 10° angled flush-mounting socket-outlet – german standard – 2P+E 16A 2. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW62393 |
| Product Category | Plugs & Sockets (CEE) |
| Flange dimensions (mm) | 50×50 |
| Type | Flush-mounting socket-outlet with shutter |
| Thermo-pressure with ball | 125 °C (active parts) – 70 °C (passive parts) |
| IP degree | IP54 |
| No. of poles | 2P+E |
| Frequency | 50/60 Hz |
| Operating temperature | -25 +55 °C |
| Type of wiring | With screw |
| Glow wire test | 850 °C (active parts) – 650 °C (passive parts) |
| Colour | Blue |
| Rated current (A) | 16 |
| Rated voltage | 200-250 V |
| Standard | German |
| Ware Number | 85366990 |
| Condition | New & original |
| Availability | On request |
Download official Gewiss datasheet (PDF)
Independent distributor — not an authorised Gewiss dealer. All parameters are taken from the official manufacturer documentation.
