Description

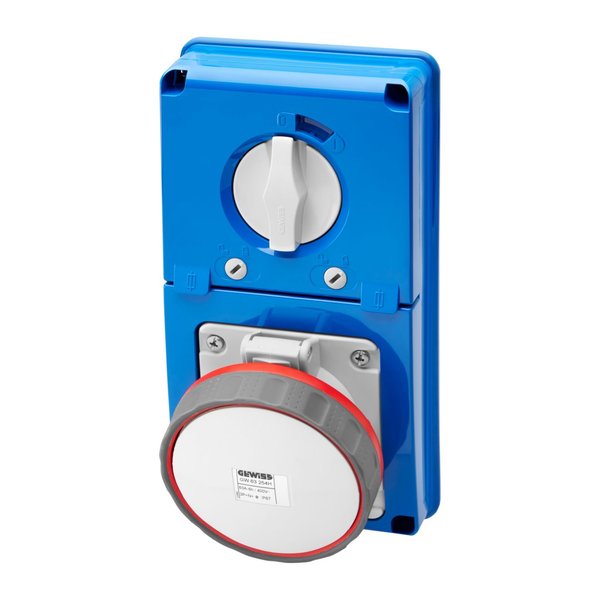

Gewiss GW66353N — VERTICAL FIXED INTERLOCKED SOCKET OUTLET. Manufacturer designation: Vertical fixed interlocked socket outlet – without bottom – with fuse-. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW66353N |
| Product Category | Plugs & Sockets (CEE) |
| Type of fuse | Ø 22×58 mm |
| Type | Vertical |
| Fuse breacking capacity | > 50 kA |
| Thermo-pressure with ball | 125 °C |
| Rated insulation voltage (Ui) | 500 V |
| IP degree | IP67 |
| No. of poles | 3P+N+E |
| Mechanical resistance | IK08 |
| Frequency | 50/60 Hz |
| Operating temperature | -25 +40 °C |
| Protection | Fuse-holder base (CBF) |
| With back-mounting box | No |
| Electrocod | 2222 |
| Glow wire test | 850 °C |
| Colour | Red |
| Breaking capacity (Icc) | 10 kA |
| Weight | Max. 2.2 Kg |
| IB socket outlet rated current (In) | 48 A |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated current (A) | 63 |
| Rated voltage | 380 – 415 V |
| Condition | New & original |
| Availability | On request |
Download official Gewiss datasheet (PDF)
Independent distributor — not an authorised Gewiss dealer. All parameters are taken from the official manufacturer documentation.
