Description

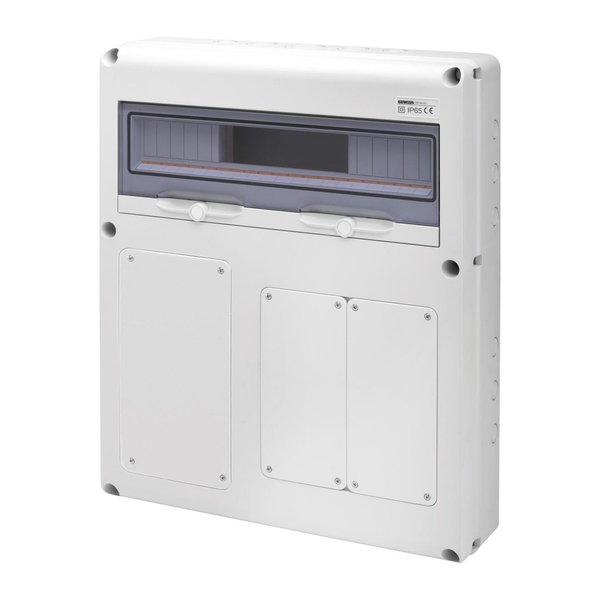

Gewiss GW68022N — Q-DIN 20 MODULES. Manufacturer designation: Q-DIN 20 modules – 1 flange ib vertical 63A IP67 + 2 ib vertical 16/32. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Gewiss |
|---|---|
| Article No. (MPN) | GW68022N |
| Product Category | Distribution & Installation |
| Colour | Grey RAL 7035 |
| IP degree | IP65 |
| No. of modules EN 50022 | 20 |
| Houseable socket | 1 IB Vert. 63 A IP67 + 2 IB Vert. 16/32 A IP67 |
| Installation type | Surface-mounting |
| Dispersible power A (W) | 30 |
| Dispersible power B (W) | 92 |
| Accordance with Standards | EN 62208 |
| Glow Wire Test | 650 °C |
| Mechanical resistance | IK08 |
| Operating temperature | -25 +40 °C |
| Thermo-pressure with ball | 70 °C |
| Insulation class | II |
| Version | Empty |
| Ware Number | 85381000 |
| Condition | New & original |
| Availability | On request |
Download official Gewiss datasheet (PDF)
Independent distributor — not an authorised Gewiss dealer. All parameters are taken from the official manufacturer documentation.
