Description

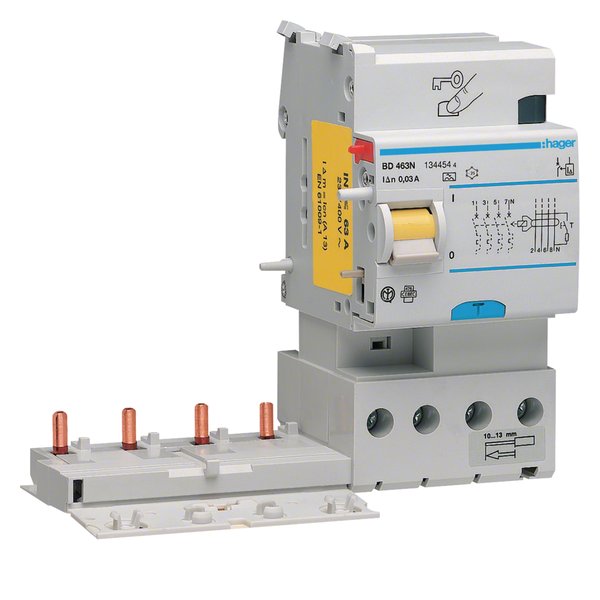

Hager BD463N — Earth Leakage Add-on Block 4P. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | BD463N |
| Product Category | Circuit Breakers |
| Rated operational voltage Ue | 230 – 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4000 V |
| Frequency | 50 – 50 Hz |
| Rated residual operating current Idn | 30 mA |
| Rated current IN | 63 A |
| Number of poles | 4 |
| Type of connection | Screw connection |
| Number of modules | 3 |
| Nominal torque | 2.90 – 2.90 Nm |
| Nominal torque, bottom terminal | 2.90 – 2.90 Nm |
| Alignment of bottom connection for modular devices | aligned terminals |
| Height | 70 mm |
| Width | 35 mm |
| Depth | 92 mm |
| RoHS conform | Yes |
| EAN / GTIN | 3250611344544 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
