Description

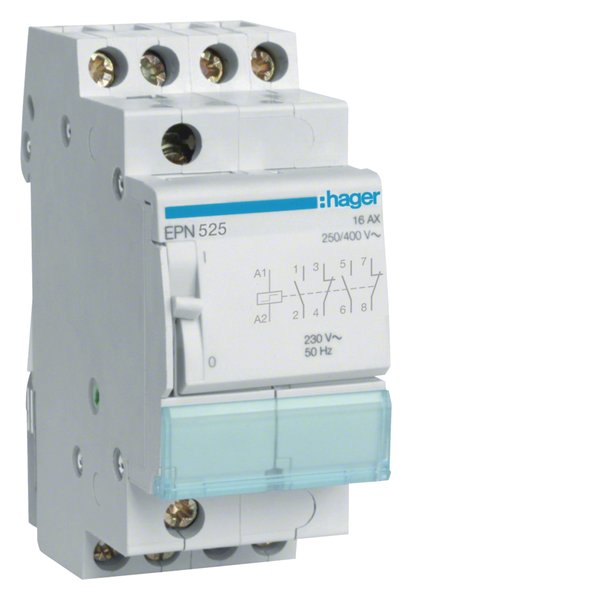

Hager EPN525 — Latching Relay 2nc+2no. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | EPN525 |
| Product Category | Relays & Couplers |
| Rated current IN | 16 A |
| Rated insulation voltage Ui | 400 V |
| Rated operational voltage Ue | 250 – 250 V |
| Frequency | 50 – 60 Hz |
| Type of connection | Screw connection |
| Number of modules | 2 |
| Height | 83 mm |
| Width | 35 mm |
| Depth | 63 mm |
| Ambient operating temperature | 5 – 40 °C |
| Power dissipation at IN | 2.40 W |
| REACh-SVHC free | Yes |
| RoHS conform | Yes |
| EAN / GTIN | 3250612369485 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
