Description

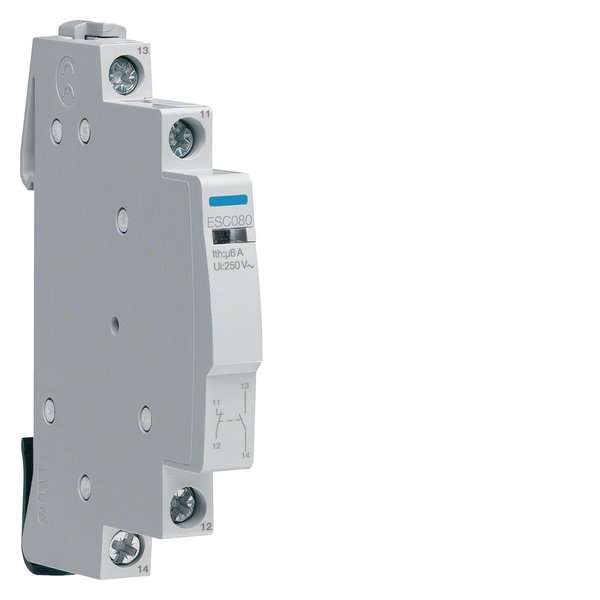

Hager ESC080 — Auxiliary Contact 1NO+1NC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | ESC080 |
| Product Category | Relays & Couplers |
| Rated current IN | 6 A |
| Rated insulation voltage Ui | 240 V |
| Type of connection | Screw connection |
| Number of modules | 0.50 |
| Height | 83 mm |
| Width | 11 mm |
| Depth | 60 mm |
| Ambient operating temperature | 10 – 50 °C |
| Power dissipation at IN | 0.10 W |
| Halogen-free | Yes |
| REACh-SVHC free | Yes |
| RoHS conform | Yes |
| EAN / GTIN | 3250612401895 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
