Description

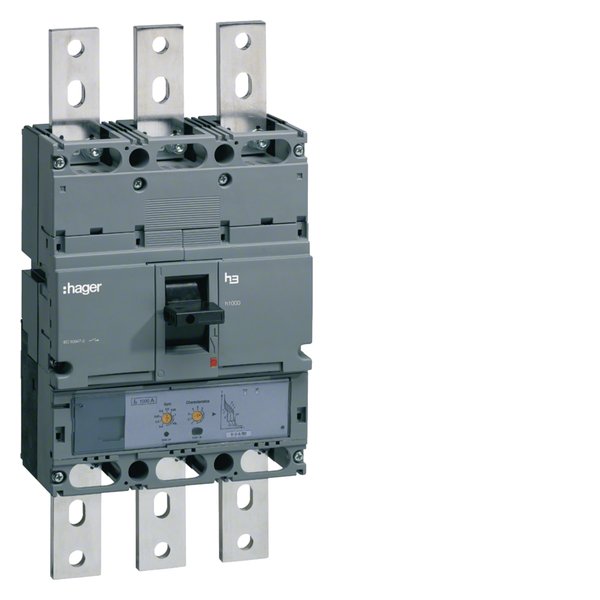

Hager HEE970H — MCCB H1000 3P 70kA 1000A. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Hager |
|---|---|
| Article No. (MPN) | HEE970H |
| Product Category | Circuit Breakers |
| Rated current IN | 1000 A |
| Number of poles | 3 |
| Frequency | 50 – 60 Hz |
| Rated impulse withstand voltage Uimp | 8000 V |
| Rated insulation voltage Ui | 800 V |
| Rated operational voltage Ue | 220 – 690 V |
| Ingress Protection (IP) class | IP4X |
| Number of modules | 12 |
| Nominal torque | 65 – 65 Nm |
| Suitable for DIN rail | No |
| Power dissipation at IN | 186 W |
| Electrical endurance in operating cycles | 1000 |
| Mechanical endurance in operating cycles | 4000 |
| Ambient operating temperature | 25 – 70 °C |
| EAN / GTIN | 3250613349783 |
| Condition | New & original |
| Availability | On request |
Download official Hager German product datasheet (source document) (PDF)
Independent distributor — not an authorised Hager dealer. All parameters are taken from the official manufacturer documentation.
