Description

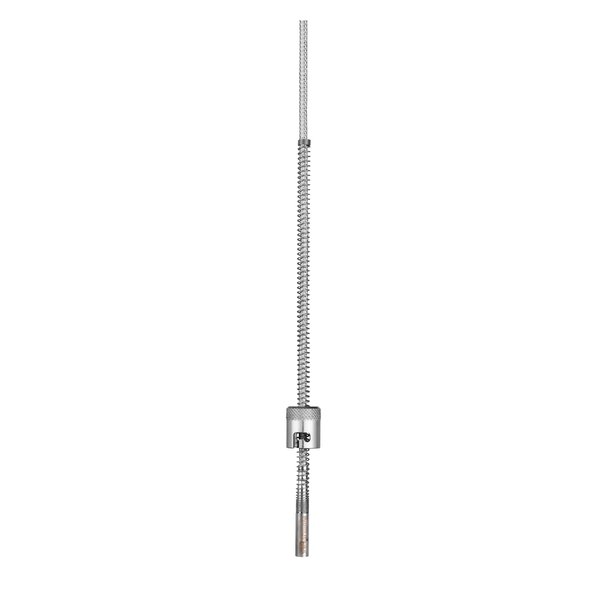

JUMO 901190/20-848-1042-8-250-11-2500/309, — Thermocouple with bayonet lock. Official JUMO designation: Push-in thermocouples. Product series: With bayonet fastener. Thermocouple with bayonet lock, 1xFe-CuNi, 8x(6)250mm, 0..400°C. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00055792 |
| Order code (type) | 901190/20-848-1042-8-250-11-2500/309, |
| Product Category | Sensors |
| Product line | TE Einsteck.m.Bajonettverschluss |
| Description (manufacturer) | Thermocouple with bayonet lock, 1xFe-CuNi, 8x(6)250mm, 0..400°C |
| Special features | Cable made of silicone, PTFE, metal braiding, ceramic probe tip, meets the specification according to AMS2750 E and CQI-9 |
| Operating temperature | 0 to 400 °C |
| Option | Shielded cable |
| Process connection | Bayonet fastener |
| Thermopairs | J, L, K |
| Protection fitting | Stainless steel 1.4571 |
| Connection | Cable |
| Areas of application | Plastics industry, woodworking machines, printing machines |
| Measuring circuits | 1/2 |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.106 kg |
| Customs tariff number (HS) | 90251900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
