Description

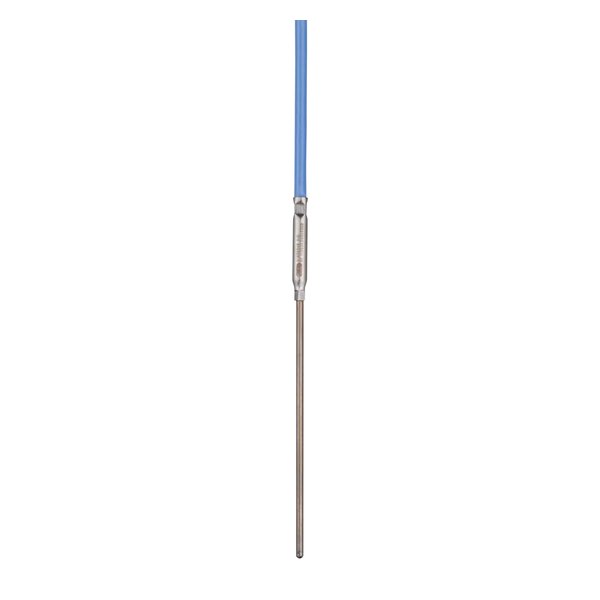

JUMO 901250/32-1043-0,5-100-11-2500/000 — Sheath thermocouple. Official JUMO designation: Mineral-insulated thermocouples. Product series: According to DIN 43710 and DIN EN 60584 with compensating cable. Sheath thermocouple, compensation cable, 1xNiCr-Ni, 0.5x100mm, -200..+1200°C. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00066345 |
| Order code (type) | 901250/32-1043-0,5-100-11-2500/000 |
| Product Category | Sensors |
| Product line | TE Mantel.m.Ausgleichsleitung |
| Description (manufacturer) | Sheath thermocouple, compensation cable, 1xNiCr-Ni, 0.5x100mm, -200..+1200°C |
| Connection | Ferrules according to DIN 46228, multi-pole plug connector |
| Compensating cable | Silicone, PTFE, metal braiding |
| Process connection | Screw connection G 1/2, screw connection G 3/8 |
| Protection tube | Stainless steel 1.4541, Inconel 2.4816 (Inconel 600) |
| Measuring insert | J, K, L |
| Option | Application-specific insertion length, protection tube diameter from 0.5 mm |
| Application areas | chemical plants, power plants, pipes, engine manufacturing, test benches, stationary fuel cells (temperature measurement, flame monitoring) |
| Special features | Flexible sheath cable with vibration-resistant measuring insert, fast response time |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.08 kg |
| Customs tariff number (HS) | 90251900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
