Description

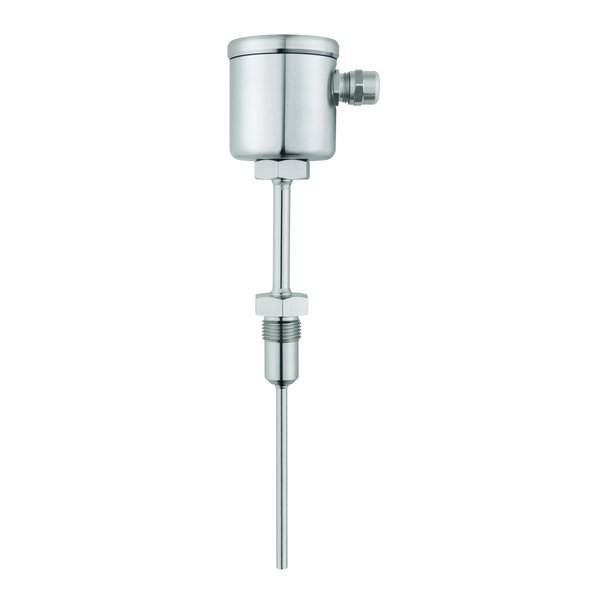

JUMO 902810/20-1001-2-6-25-613-24/452, — Resistance thermometer. Official JUMO designation: RTD temperature probe. Product series: For the food and pharmaceutical industry. Resistance thermometer, 1xPt100 dl, 6x25mm, Clamp DN25/40, -50..+250°C. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00405849 |
| Order code (type) | 902810/20-1001-2-6-25-613-24/452, |
| Product Category | Sensors |
| Product line | WTH f.Lebensm.u.Pharma-Industrie |
| Description (manufacturer) | Resistance thermometer, 1xPt100 dl, 6x25mm, Clamp DN25/40, -50..+250°C |
| Operating temperature | -50 to +250 °C |
| Approvals | SIL and PL compatible |
| Protection fitting | Stainless steel 316L |
| Measuring circuits | 1/2 |
| Sensor | Pt100 |
| Process connection | Thread, hygienic connections, screw connections, JUMO PEKA, CIP-compliant process connections, including electropolished Ra< 0.8 µm, hygienic thermowells |
| Terminal head | Form B, BUZ, BUZH, stainless steel terminal head |
| Option | Head transmitter |
| Declaration of conformity | EC 1935/2004 material confirmation |
| Output | Pt100 passive; 1 × analog output 0(4) to 20 mA, 0 to 10 V; 1 × programmable transmitter output 4 to 20 mA |
| Protection type | IP67/IP69K |
| Accuracy | Tolerance class: class A (class AA as optional extra) |
| Areas of application | Food and pharmaceutical applications, CIP and SIP plants, mechanical and plant engineering, refrigeration and air-conditioning engineering |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.695 kg |
| Customs tariff number (HS) | 90251900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
