Description

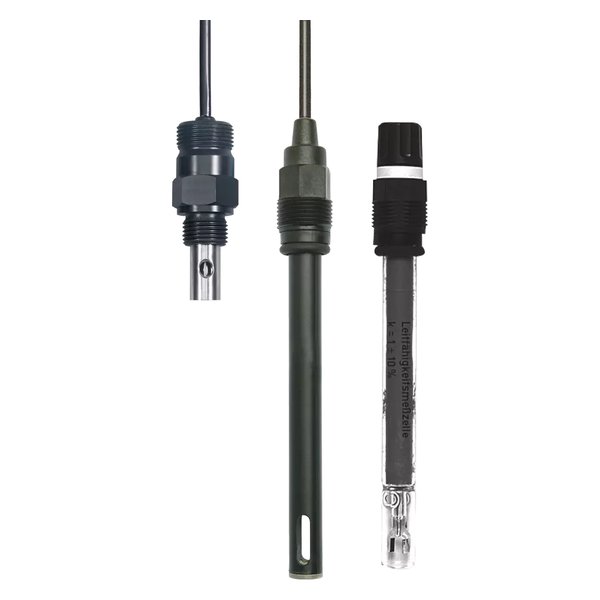

JUMO 202922/20-0010-1003-26-104-20-5000-40/000 — Conductive. Official JUMO designation: JUMO BlackLine CR-GT/-EC/-GS. Product series: Conductive two-electrode conductivity sensor. Conductive 2-electrode conductivity sensor 0.1 to 1000 uS/cm, Pt100, G 1/2A,M12. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00418069 |
| Order code (type) | 202922/20-0010-1003-26-104-20-5000-40/000 |
| Product Category | Sensors |
| Product line | JUMO BlackLine Lf |
| Description (manufacturer) | Conductive 2-electrode conductivity sensor 0.1 to 1000 uS/cm, Pt100, G 1/2A,M12 |
| Measuring ranges | 0.05 μS/cm to 100 mS/cm |
| Electrode material | JUMO BlackLine CR-GT: special graphite; JUMO BlackLine CR-EC: stainless steel (1.4571) or titanium; JUMO BlackLine CR-GS: platinum |
| Process connection | Screw head Pg 13.5, screw-in thread G 1/2A or 1/2″-14 NPT or plug head |
| Process pressure | Up to 6 bar |
| Operating temperature | -5 to +80 °C |
| Cell constant | K = 0.01; 0.1 or 1.0 |
| Areas of application | Drinking water; ion exchangers and reverse osmosis plants; aquaristics |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.227 kg |
| Customs tariff number (HS) | 90278930 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
