Description

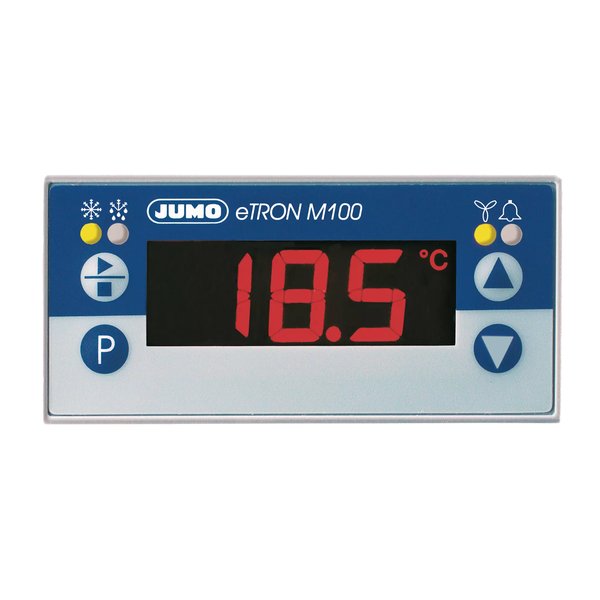

JUMO 701061/820-32/236 — Electronic cooling controller. Official JUMO designation: JUMO eTRON M100. Electronic cooling controller, 2 measurement inputs, 4 relays, 2 push-in probes. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00483029 |
| Order code (type) | 701061/820-32/236 |
| Product Category | Sensors |
| Product line | eTRON M100 |
| Description (manufacturer) | Electronic cooling controller, 2 measurement inputs, 4 relays, 2 push-in probes |
| Voltage supply | AC/DC 12 to 24 V +15/-15 %, 48 to 63 Hz |
| Format | 76 mm × 36 mm × 71.7 mm |
| Special features | Defrosting function with “electrical” or “hot gas” capability can be programmed; real-time clock; interface; operating hours counter; data logger; setup program including transmission and visualization of the measured values stored in the data logger; HACCP-co |
| Alarms | Alarm via relay or buzzer |
| Protection type | At the front IP65; at the rear IP20 |
| Mounting | Panel mounting |
| Approvals | cULus |
| Outputs | 1 changeover contact 16 A/250 V and 2 normally open contacts 8 A/250 V; optional: 1 changeover contact 16 A/250 V for alarm output |
| Measuring inputs | 2 analog inputs for: Pt100; Pt1000; KTY1x-6 or KTY2x-6 in two-wire circuit (user configurable) |
| Connections | Screw terminals |
| Display | Three-digit backlit LCD display with 13 mm digit height and special characters for °C, °F, h, min, s; switching position indicator for cooling, defrost heating, fan, and alarm |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.415 kg |
| Customs tariff number (HS) | 90321020 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
