Description

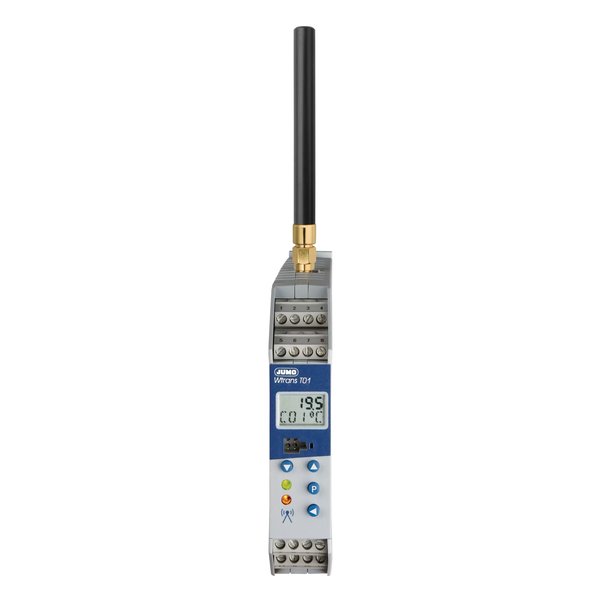

JUMO 902931/10-8-10-25/000 — Radio receiver. Official JUMO designation: JUMO Wtrans receiver. Product series: Universal receiver for JUMO wireless measuring probes. Radio receiver, ISM band 868,4 MHz, AC/DC 20..30V, RS-485, 4x analog. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00543005 |
| Order code (type) | 902931/10-8-10-25/000 |
| Product Category | Sensors |
| Product line | WL Wireless Empfaenger/Wtrans |
| Description (manufacturer) | Radio receiver, ISM band 868,4 MHz, AC/DC 20..30V, RS-485, 4x analog |
| Configuration | Via PC interface or keys on the front |
| Ambient temperature | -20 to +50 °C |
| Installation | On mounting rail/DIN rail 35 × 7.5 mm |
| Input | 16 receiving channels (receiving frequency 868.4 MHz) |
| Galvanic isolation | 50 V |
| Output | 2 × 4 to 20 mA/0 to 10 V, 2 × relay or 4 × 4 to 20 mA/0 to 10 V |
| NAMUR compliant | NE21 |
| Voltage supply | AC 110 to 240 V, AC/DC 20 to 30 V |
| Calibration accuracy | ± 0.1 % |
| Approvals | cULus, IC, FCC |
| Special features | LCD display, RS-485 interface (Modbus) |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.66 kg |
| Customs tariff number (HS) | 85176200 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
