Description

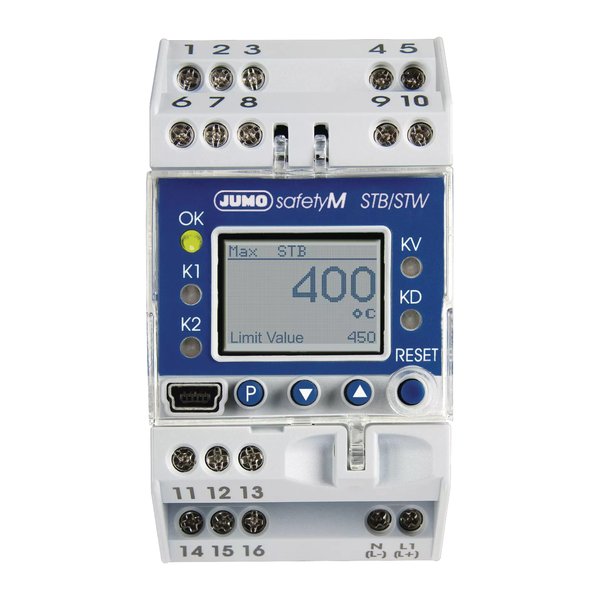

JUMO 701150/8-01-0253-2001-25/005,058 — Safety temperature limiter/monitor. Official JUMO designation: JUMO safetyM STB/STW. Product series: Safety temperature limiter, safety temperature monitor according to DIN EN 14597. Safety temperature limiter/monitor, , AC/DC 20 bis 30 V, SIL qualification. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00564208 |
| Order code (type) | 701150/8-01-0253-2001-25/005,058 |
| Product Category | PLC & Controllers |
| Product line | STW, STB |
| Description (manufacturer) | Safety temperature limiter/monitor, , AC/DC 20 bis 30 V, SIL qualification |
| Linearization | 12 linearizations can be set |
| Pt100 DIN IEC 60751:2008 | -200 to +850 °C |
| Pt1000 DIN IEC 60751:2008 | -200 to +850 °C |
| Error tolerance time | ≤ 5 s time taken into account for all diagnostic tests |
| Input filter | Digital filter, 2nd order, filter constant can be set from 0 to 100 s |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.57 kg |
| Customs tariff number (HS) | 90328900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
