Description

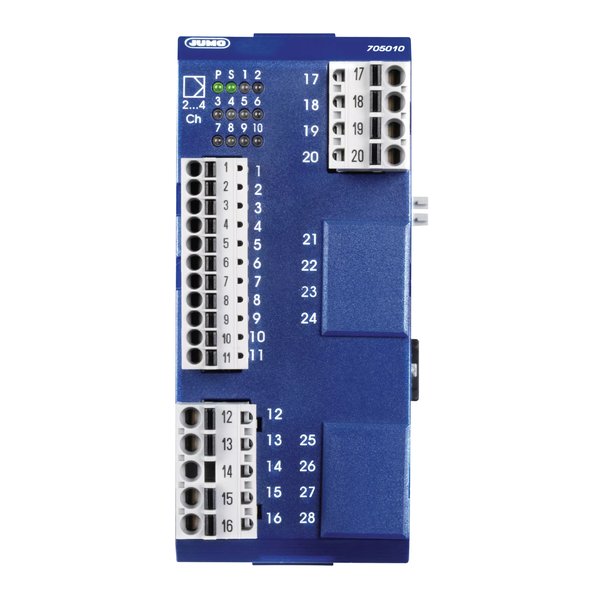

JUMO 705010/18-400-36/000 — Multichannel controller module for DIN. Official JUMO designation: JUMO mTRON T. Product series: Multichannel controller module. Multichannel controller module for DIN rail, 2 relays, analog output, DC 24V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00577976 |
| Order code (type) | 705010/18-400-36/000 |
| Product Category | PLC & Controllers |
| Product line | JUMO Mehrkanal-Reglermodul |
| Description (manufacturer) | Multichannel controller module for DIN rail, 2 relays, analog output, DC 24V |
| Special features | Up to 4 independently user configurable PID control loops with a fast cycle time and tried-and-tested control algorithms, independent operation, math and logic functions, counter input up to 10 kHz |
| Number of analog inputs | 2 + 2 (optional) |
| A/D converter | Dynamic resolution up to 16 bit |
| Number of digital inputs | 2 + 6 (optional) |
| Controller types | Two-state controller, three-state controller, three-step controller, continuous controller, continuous controller with integrated position controller |
| Controller structures | P/PD/PI/PID |
| Voltage supply | DC 24 V +25/-20 % |
| Current consumption | Max. 300 mA (at DC 19.2 V) |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Approvals | UL, DNV |
| Ambient temperature | -20 to +55 °C |
| Protection type | IP20, according to DIN EN 60529 |
| Dimensions (W × H × D) | 45 mm × 103.6 mm × 101.5 mm (without connection elements) |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.352 kg |
| Customs tariff number (HS) | 85043129 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
