Description

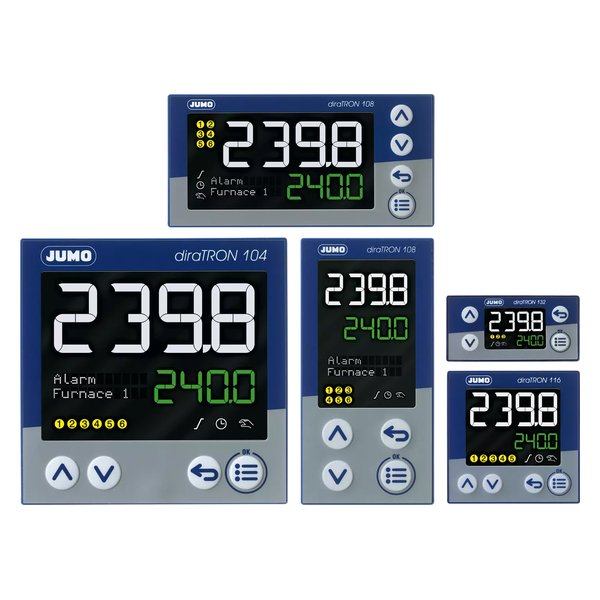

JUMO 702110/8-0300-23/000 — Compact controller for panel mounting. Official JUMO designation: JUMO diraTRON. Product series: Compact controller. Compact controller for panel mounting, (48 x 24 mm), AC 110 to 240 V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00680784 |
| Order code (type) | 702110/8-0300-23/000 |
| Product Category | Sensor Accessories |
| Product line | JUMO diraTRON 132/116/108/104 |
| Description (manufacturer) | Compact controller for panel mounting, (48 x 24 mm), AC 110 to 240 V |
| Inputs | Inputs 1 × universal thermocouple, RTD temperature probe, 0(2) to 10 V, 0(4) to 20 mA; 2 × digital input |
| Outputs | 1 × logic output, up to 2 relays (3 A/230 V normally open contact); up to 4 optionally: relay, logic, PhotoMOS®, analog output |
| Display | 2 × 18-segment LCD, pixel matrix LCD |
| Formats | 132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm |
| Interfaces | RS485 (Modbus-RTU), micro USB (configuration) |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.178 kg |
| Customs tariff number (HS) | 90328900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
