Description

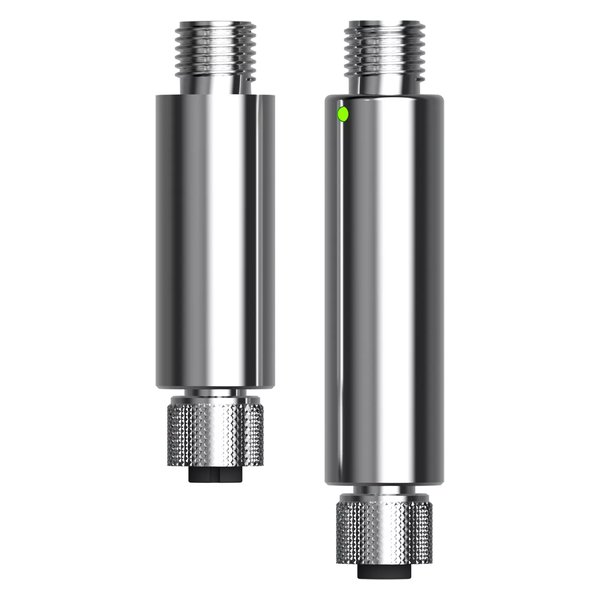

JUMO 707090/8-1011/000 — Cable transmitter temperature. Official JUMO designation: JUMO dTRANS T09. Product series: Cable transmitter for temperature. Cable transmitter temperature, Pt100, plug / play, steel case,current DC 4-20 mA. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00725428 |
| Order code (type) | 707090/8-1011/000 |
| Product Category | Sensor Accessories |
| Product line | dTRANS T09 |
| Description (manufacturer) | Cable transmitter temperature, Pt100, plug / play, steel case,current DC 4-20 mA |
| Version | JUMO dTRANS T09 AS (analog output), JUMO dTRANS T09 DS (digital output) |
| Format | Cable transmitter |
| Mounting | In the cable line |
| Measurement input | RTD temperature probe with Pt100 or Pt1000, four-wire connection |
| Connection | M12 (on both sides) |
| Output | Current DC 4 to 20 mA or IO-Link interface |
| Housing | Stainless steel |
| Protection type | IP66, IP67, and IP69 |
| Approval | cULus |
| Special features | Customer-specific configuration possible, high degree of vibration and shock resistance, separated from temperature sensor (thermally and mechanically decoupled) |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.04 kg |
| Customs tariff number (HS) | 85043129 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
