Description

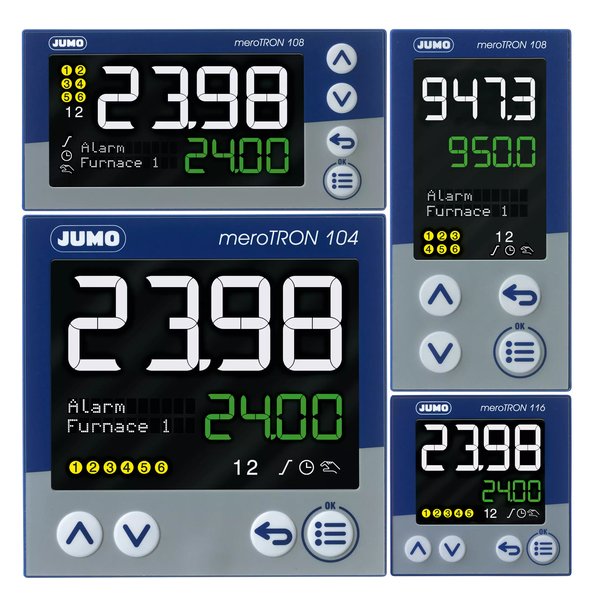

JUMO 703051/8-00-00-00-00-00-00-23/000 — Compact controller with program. Official JUMO designation: JUMO meroTRON. Product series: Modular one-channel/two-channel controller with PLC function. Compact controller with program function, (48×48 mm), analog input, analog output, AC 110-240V. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 00761870 |
| Order code (type) | 703051/8-00-00-00-00-00-00-23/000 |
| Product Category | PLC & Controllers |
| Description (manufacturer) | Compact controller with program function, (48×48 mm), analog input, analog output, AC 110-240V |
| Inputs | 1 analog input and 1 digital input; optional additional analog, digital and counting inputs (10 kHz); calibration of analog inputs according to CQI-9 and AMS2750 (optional) |
| Outputs | 2 relays (normally open contact); optionally additional analog outputs, relays (normally open contact, changeover contact) solid state relays, logic outputs (0/14 V or 0/24 V) and open collector outputs |
| Control types | Two-state controller, three-state controller, modulating controller, position controller, continuous controller, program controller |
| Display | 2 LCD displays with 18 segments each including display of texts for menu, parameters, and process information |
| Formats | 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm |
| Interfaces | USB host and USB device (setup); optional: RS485 (Modbus RTU master/slave); Ethernet (Modbus TCP master/slave); PROFINET device |
| Special features | Individual design of operating levels; modular structure with option cards; 2 timers; 8 limit value monitoring functions; fast hardware counters (12,5 kHz); operating hours and service counters; data logger; Modbus master function; logic outputs (24 V) can als |
| Connections | Removable terminal strips with PUSH IN |
| Voltage supply | AC 110 to 240 V or AC/DC 24 V |
| Approvals | UL/UL (listed), AMS 2750, CQI-9 |
| Title | Customer benefits at a glance |
| Benefit | Process reliability through precise control with program start and sequence controls in real time |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.364 kg |
| Customs tariff number (HS) | 90328900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
