Description

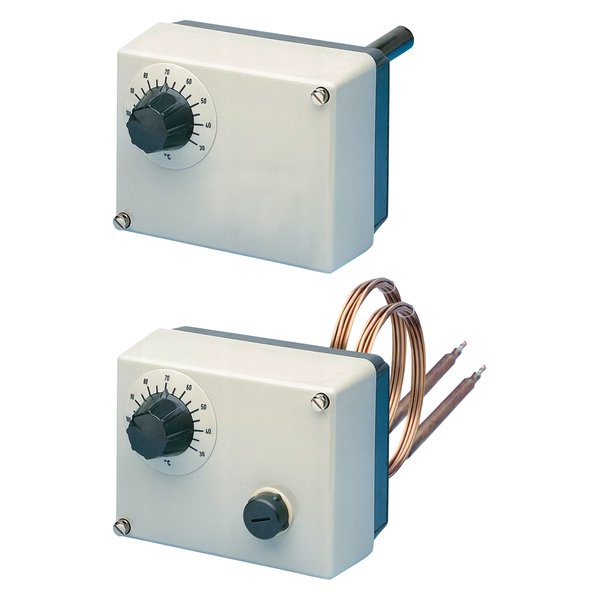

JUMO 603026/0202-1-043-30-0-00-20-13-46-200-15-6/000 — Double thermostat. Official JUMO designation: Surface-mounted double thermostat. Product series: ATH series. Double thermostat (TW/TW), 20..150°C, insertion length 200 mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 60000203 |
| Order code (type) | 603026/0202-1-043-30-0-00-20-13-46-200-15-6/000 |
| Product Category | PLC & Controllers |
| Product line | ATH Doppel-Thermostat |
| Description (manufacturer) | Double thermostat (TW/TW), 20..150°C, insertion length 200 mm |
| Switching capacity | 10 A, 230 V |
| Switching elements | Single-pole snap-action switch |
| Maximum control range/limit value | 500 °C |
| Areas of application | Heating industry, air-conditioning industry, general mechanical engineering |
| Protection type | IP54; IP65 (type 603035) |
| Approvals | DIN, (PED, EAC; type 603021, 603026) |
| Variants / versions | Temperature controller (TR), temperature monitor (TW), safety temperature monitor (STW), safety temperature limiter (STB) |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.75 kg |
| Customs tariff number (HS) | 90321080 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
