Description

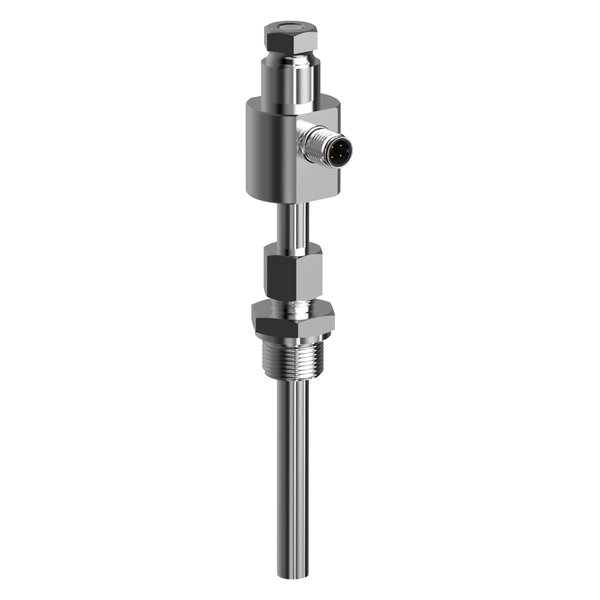

JUMO 608740/10-200-1011-1-831-13-20-150/000 — Tube for redundant temperature. Official JUMO designation: JUMO dicoTEMP 100. Product series: Smart tube for temperature measurement. Tube for redundant temperature measurement, Pt100, 150 mm, G1 screw connection. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | JUMO |
|---|---|
| Article No. (MPN) | 60003453 |
| Order code (type) | 608740/10-200-1011-1-831-13-20-150/000 |
| Product Category | Sensor Accessories |
| Product line | JUMO dicoTEMP 100 |
| Description (manufacturer) | Tube for redundant temperature measurement, Pt100, 150 mm, G1 screw connection |
| Temperature | -40 to +260 °C |
| Process connection | Thread G1/2, G1 |
| Sensor | Pt100 or Pt1000 in four-wire circuit |
| Connection | M12 |
| Protection type | IP66, IP67, IP69 |
| Material | Stainless steel |
| Probe diameter | 6, 8, or 10 mm |
| Insertion length | 65 to 300 mm |
| Ambient temperatures | -40 to +85 °C |
| Transmitter | 4 to 20 mA or IO-Link (optional cable transmitter) |
| Special features | Easy startup, diverse temperature measurement based on 2 different measuring principles, only 1 measuring point required for diverse temperature measurement thanks to smart tube, compact system, various output signals – resistance signal, analog signal, and di |
| Application areas | Transformer and compressor construction, service area (retrofit), hydraulic units, general mechanical and plant engineering, particularly water treatment plants |
| MOQ (minimum order quantity) | 1 piece |
| Country of origin | Germany |
| Net weight | 0.393 kg |
| Customs tariff number (HS) | 90251900 |
| Order unit | Pieces |
| Condition | New & original |
| Availability | On request |
Download official JUMO datasheet (PDF)
Independent distributor — not an authorised JUMO dealer. All parameters are taken from the official JUMO product documentation.
