Description

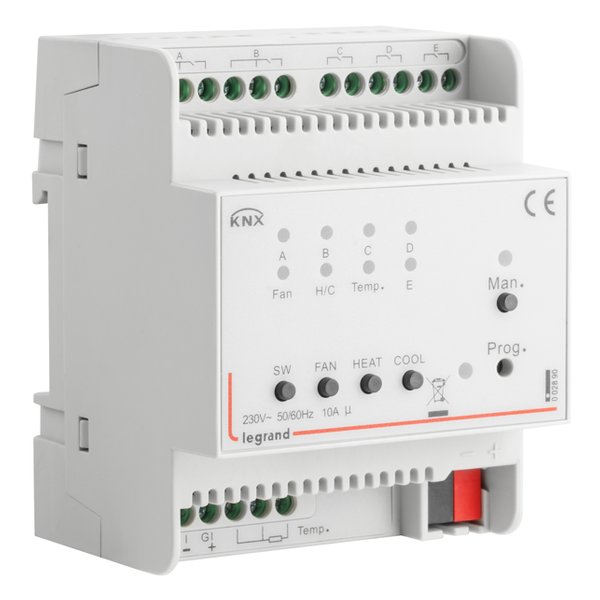

Legrand 002890 — Modular KNX BUS Fan Coil Controller. Manufacturer designation: Modular KNX BUS fan coil controller – 4 modules 0V to 10V version – 4 modules. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 002890 |
| Product Category | Distribution & Installation |
| Système de bus KNX | Yes |
| Width | 72mm |
| Height | 90mm |
| Système de bus KNX-radio | No |
| Depth | 64.2mm |
| Système de bus radio | No |
| Système de bus LON | No |
| Système de bus Powernet | Yes |
| Autres systèmes de bus | Sans |
| Radio bidirectionnelle | No |
| Mode de pose | DRA (DIN-rail adapter) |
| Largeur en nombre de modules | 72 |
| Couplage au bus inclus | Yes |
| Module de bus amovible | Yes |
| Grandeur de commande continue | Yes |
| Grandeur de commande commutable | Yes |
| Fonction de protection des vannes | Yes |
| Commutation manuelle | Yes |
| Courant de coupure max. (charge résistive/ohmique) | 16A |
| Courant de sortie max. | 10A |
| Tension de commutation (Min-Max) | 0-240V |
| EAN / GTIN | 3414972579599 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
