Description

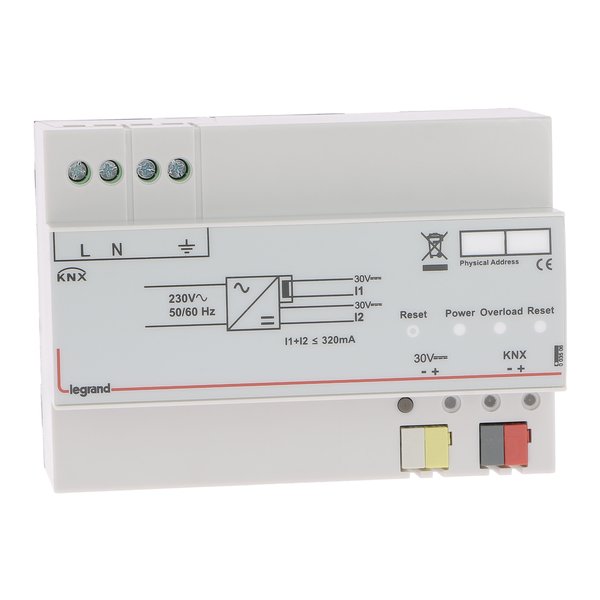

Legrand 003506 — Modular KNX BUS Power. Manufacturer designation: Modular KNX BUS power supply 150V~ to 275V~ – 30V DC – 320mA – 7 modules. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 003506 |
| Product Category | Distribution & Installation |
| Système de bus KNX | Yes |
| Système de bus KNX-radio | No |
| Système de bus radio | No |
| Système de bus LON | No |
| Système de bus Powernet | No |
| Autres systèmes de bus | Sans |
| Mode de pose | DRA (DIN-rail adapter) |
| Width | 126mm |
| Height | 90mm |
| Depth | 60mm |
| Avec affichage LED | Yes |
| Tension du bus stockable | No |
| Courant de sortie max. | 640mA |
| Tension secondaire | 30V |
| Degree of protection (IP) | IP20 |
| Profondeur d’encastrement | 67mm |
| Degree of impact strength (IK) | IK06 |
| Operating / setting temperature (Min-Max) | -5-45°C |
| Storage temperature (Min-Max) | -25-55°C |
| Type of voltage | DC |
| Tension nominale (Un) (Min-Max) | 150-275V |
| EAN / GTIN | 3414972052399 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
