Description

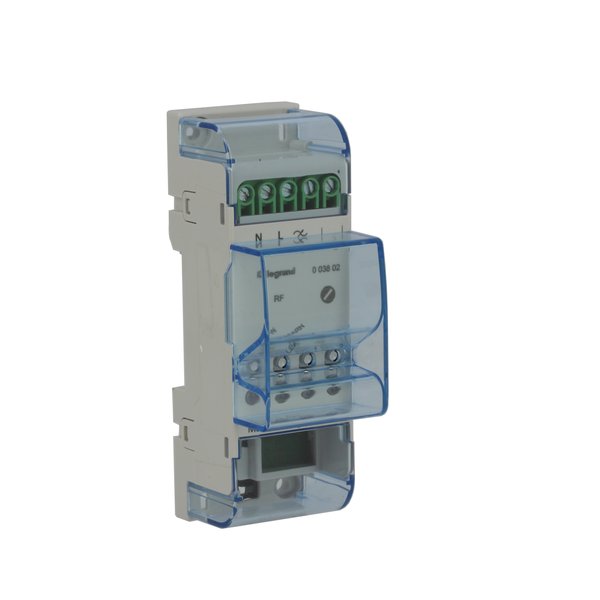

Legrand 003802 — Modular BUS Actuator For ON/OFF Load. Manufacturer designation: Modular BUS actuator for ON/OFF load control. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 003802 |
| Product Category | Distribution & Installation |
| Système de bus KNX | No |
| Système de bus KNX-radio | No |
| Système de bus LON | No |
| Système de bus Powernet | No |
| Autres systèmes de bus | Zigbee |
| Mode de pose | DRA (DIN-rail adapter) |
| Commande sur site/commande manuelle | No |
| Avec affichage LED | Yes |
| Puissance de coupure max. | 2000W |
| Puissance max. de commutation LED | 60W |
| Tension de fonctionnement normale (Min-Max) | 100-240V |
| Couplage au bus inclus | No |
| Module de bus amovible | No |
| Possibilité d’extension modulaire | No |
| Degree of protection (IP) | IP20 |
| Width | 36mm |
| Height | 106mm |
| Depth | 31mm |
| Degree of impact strength (IK) | IK07 |
| Operating / setting temperature (Min-Max) | 0-35°C |
| Storage temperature (Min-Max) | -25-75°C |
| EAN / GTIN | 3414972020473 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
