Description

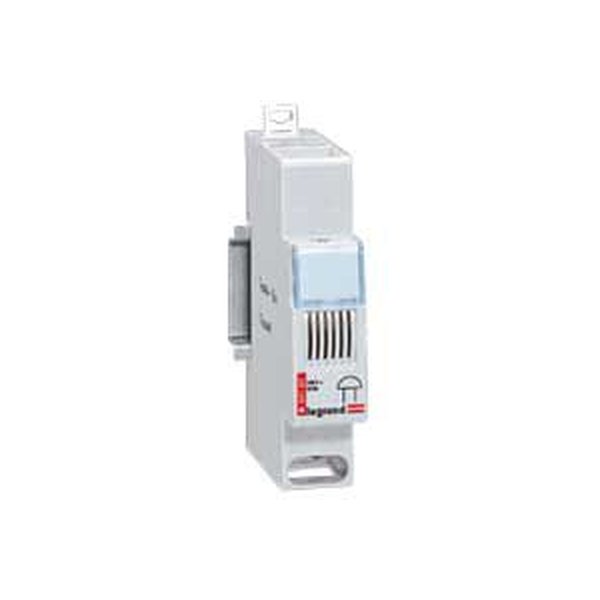

Legrand 004101 — Modular Bell. Manufacturer designation: Modular bell 8V~ to 12V~ – 80dB to 84dB – 1 module. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 004101 |
| Product Category | Distribution & Installation |
| Couleur du boîtier/corps | Grey |
| Matériau du boîtier/corps | Plastic |
| Tension nominale (Un) (Min-Max) | 12-12V |
| Type de courant | AC |
| Batterie incorporée | No |
| Consommation d’électricité (Min-Max) | 0.42-0.42A |
| Volume sonore | 84dB |
| Sans fil | No |
| Degree of protection (IP) | IP20 |
| Degré de protection (NEMA) | Other |
| Width | 17.7mm |
| Height | 77.8mm |
| Depth | 94.8mm |
| Degree of impact strength (IK) | IK05 |
| Operating / setting temperature (Min-Max) | -10-60°C |
| Storage temperature (Min-Max) | -10-60°C |
| Fréquence (Min-Max) | 50-60Hz |
| Indication de repérage des bornes de raccordement | Yes |
| Numéro RAL | 7035 |
| Antimicrobial treatment | No |
| Terminal capacity (Min-Max) | 1.5-10mm² |
| EAN / GTIN | 3245060041014 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
