Description

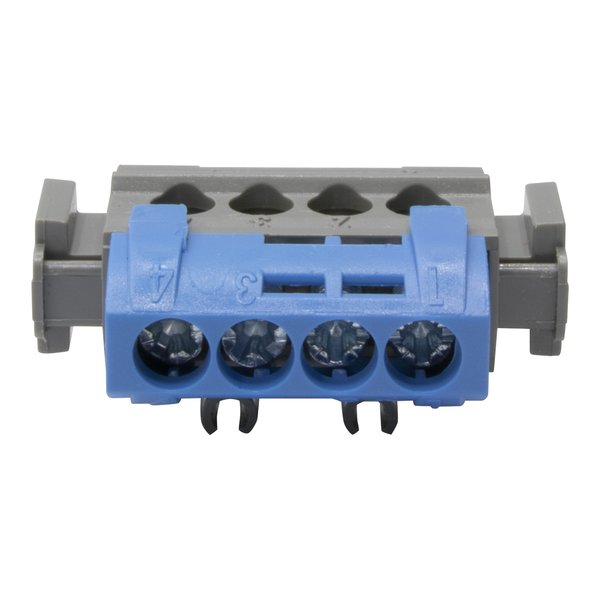

Legrand 004840 — Insulated IP2X Neutral. Manufacturer designation: Insulated IP2X neutral distribution terminal block – 4 connections 1.5mm² to 16mm² – blue – length 47mm. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 004840 |
| Product Category | Enclosures & Junction Boxes |
| Courant nominal | 76A |
| Type de connexion | Visser |
| Mode de pose | Rail DIN |
| Adapté à un conducteur massif | Yes |
| Convient aux conducteurs multibrins | Yes |
| Adapté à un conducteur à fil fin | Yes |
| Adapté pour câbles à brins fins sans embout | No |
| Adapté pour câbles à brins extra fins | No |
| Adapté pour câbles à brins extra fins sans embout | No |
| Section de conducteur, entrée (Min-Max) | 1.5-16mm² |
| Section de conducteur, sortie (Min-Max) | 1.5-16mm² |
| Protégé contre les contacts | Yes |
| Height | 30mm |
| Width | 47mm |
| Depth | 16mm |
| Degree of protection (IP) | IP2X |
| Operating / setting temperature (Min-Max) | -5-40°C |
| Storage temperature (Min-Max) | -25-70°C |
| Type de borniers | Neutre |
| Terminal capacity (Min-Max) | 1.5-16mm² |
| Label space/information surface | No |
| EAN / GTIN | 3245060048402 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
