Description

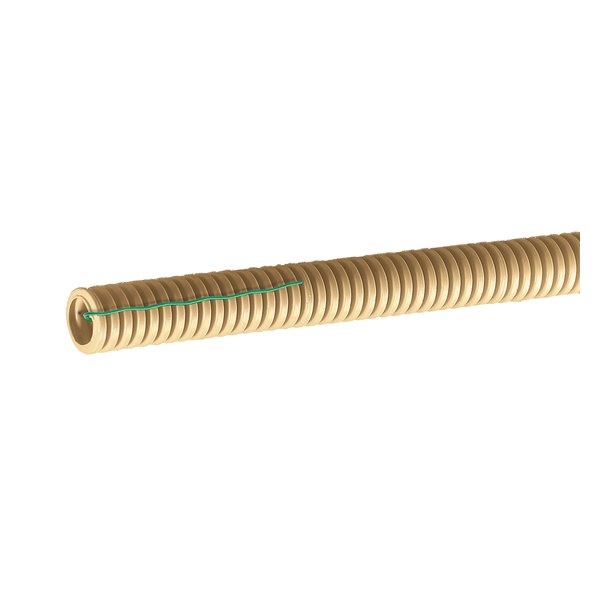

Legrand 00563 — TIIB 3422 Conduit. Manufacturer designation: TIIB 3422 conduit Ø63mm for above-ground to underground risers – ivory RAL1015. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 00563 |
| Product Category | Distribution & Installation |
| Material | Polyolefin |
| Halogen free | No |
| Fire-retardant finish | Yes |
| Flexural strength | Flexible, self-recovering |
| With sleeve | No |
| Compression resistance class according to EN 61386-1 | Medium (class 3, 750 N) |
| Impact resistance class according to EN 61386-1 | Heavy (class 4 / 6 Joules) |
| Flush-mounted installation | Yes |
| Surface mounting | Yes |
| Suitable for hollow wall installation | Yes |
| Installation on concrete | Yes |
| Installation of machines and equipment | No |
| Suitable for outdoor installation | Yes |
| Inner diameter | 52.6mm |
| Outer diameter | 63mm |
| Operating temperature (Min-Max) | -5-90°C |
| Extremely slippery inner layer | No |
| Colour | Beige |
| Antimicrobial treatment | No |
| Ean/gtin | 3414971486768 |
| EAN / GTIN | 3414971486768 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
