Description

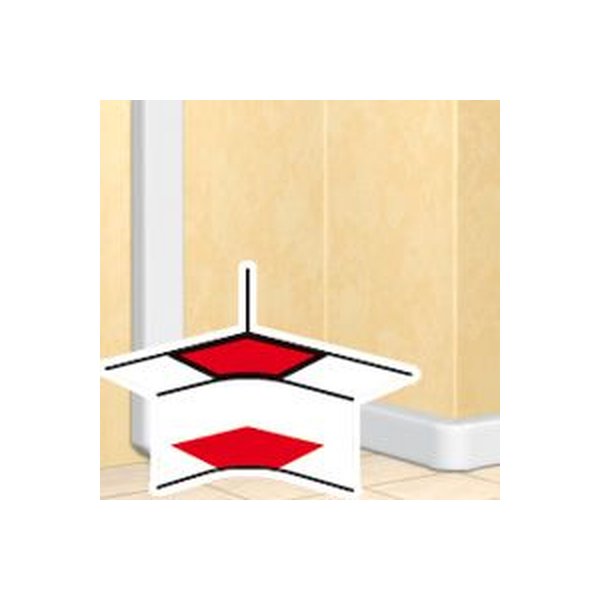

Legrand 010601 — Angle Inner For Trunking Dlp Monobloc. Manufacturer designation: Angle inner for trunking dlp monobloc 35x80mm or 35x105mm white. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 010601 |
| Product Category | Cable Support & Routing |
| Width | 106mm |
| Depth | 35mm |
| Forme | Symétrique |
| Modèle | Partie inférieure et partie supérieure |
| Angle (Min-Max) | 80-100° |
| Material | Plastic |
| Material quality | Other |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Colour | White |
| Numéro RAL | 9003 |
| Feuille de protection | No |
| Avec connecteur de conduit | No |
| Perforation de montage dans le sol | No |
| Type de montage des parties supérieures | Intérieur |
| Avec agrafe pour tenue de câble | No |
| Degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK07 |
| Operating / setting temperature (Min-Max) | -5-60°C |
| Height | 66mm |
| EAN / GTIN | 3245060106010 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
