Description

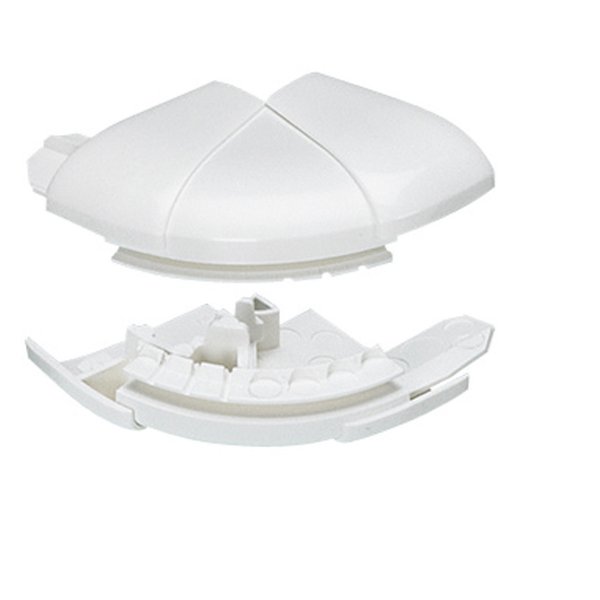

Legrand 010622 — Outer Angle For DLP Monobloc Trunking. Manufacturer designation: Outer angle for DLP monobloc trunking 50x80mm, 50x105mm, 50x150mm or 50x195mm – white. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 010622 |
| Product Category | Cable Support & Routing |
| Symétrique | Yes |
| Modèle | Partie inférieure et partie supérieure |
| Angle (Min-Max) | 60-120° |
| Material | Plastic |
| Material quality | Other |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Colour | White |
| Numéro RAL | 9003 |
| Feuille de protection | No |
| Avec connecteur de conduit | No |
| Perforation de montage dans le sol | No |
| Type de montage des parties supérieures | Intérieur |
| Avec agrafe pour tenue de câble | No |
| Degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK07 |
| Operating / setting temperature (Min-Max) | -5-60°C |
| Width | 75mm |
| Height | 33mm |
| Depth | 50mm |
| EAN / GTIN | 3245060106225 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
