Description

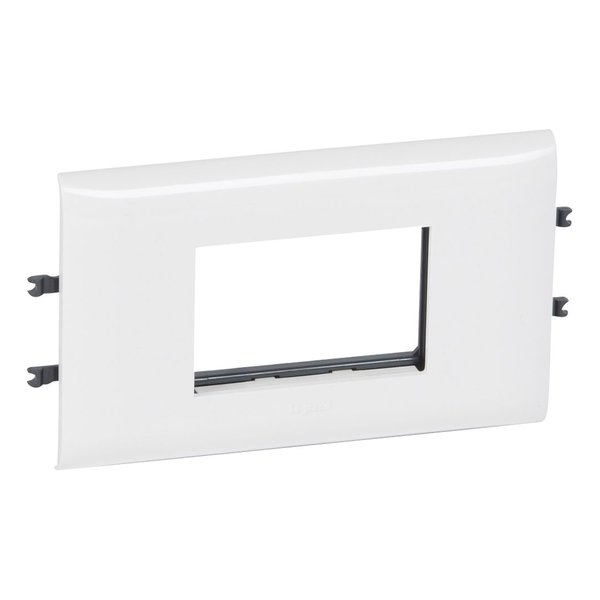

Legrand 010993 — Mosaic 3-module Support. Manufacturer designation: Mosaic 3-module support for DLP monobloc trunking with 85mm cover. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 010993 |
| Product Category | Cable Support & Routing |
| Mounting direction | Horizontal |
| Flush-mounted installation | No |
| Suitable for subfloor installation duct box | No |
| Suitable for wall duct | Yes |
| Suitable for built-in installation | No |
| Label space/information surface | No |
| Material | Plastic |
| Material quality | Other |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| With hinged lid | No |
| Degree of protection (IP) | IP40 |
| Degree of impact strength (IK) | IK07 |
| Type of fastening | Other |
| Width | 158.2mm |
| Height | 90mm |
| EAN / GTIN | 3245060109936 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
