Description

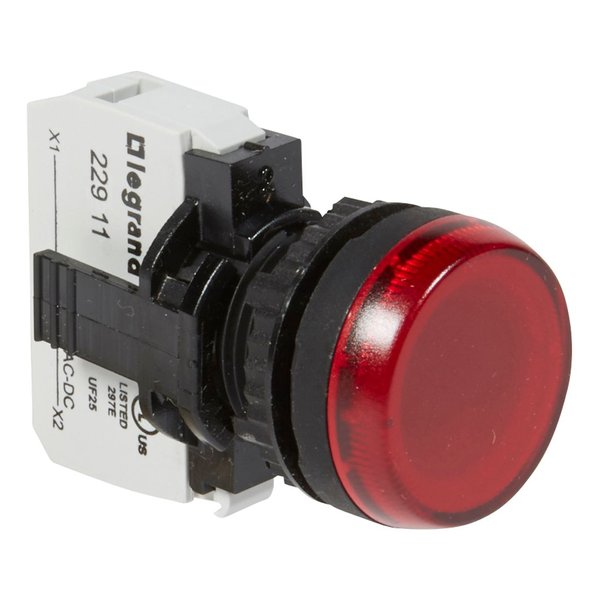

Legrand 023771 — Osmoz Complete Illuminated Indicator. Manufacturer designation: Osmoz complete illuminated indicator IP69 red – 12V to 24V AC/DC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 023771 |
| Product Category | Distribution & Installation |
| Couleur de la lentille | Rouge |
| Finition de la douille | LED |
| Source lumineuse fournie | Yes |
| Tension de fonctionnement nominale Ue (Min-Max) | 10.8-26.4V |
| Type of voltage | AC/DC |
| Electrical connection finishing | Raccordement à vis |
| Type de lentille | Rond |
| Finition de la lentille | Plat |
| Diamètre de trou | 22mm |
| Avec bague frontale | No |
| Matériau de la bague frontale | Plastic |
| Couleur de bague frontale | Black |
| Degree of protection (IP) | IP66 |
| Degree of impact strength (IK) | IK05 |
| Operating / setting temperature (Min-Max) | -25-70°C |
| Storage temperature (Min-Max) | -40-70°C |
| Durée de vie estimée de l’ampoule | 50000h |
| Ean/gtin | 3245060237714 |
| EAN / GTIN | 3245060237714 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
