Description

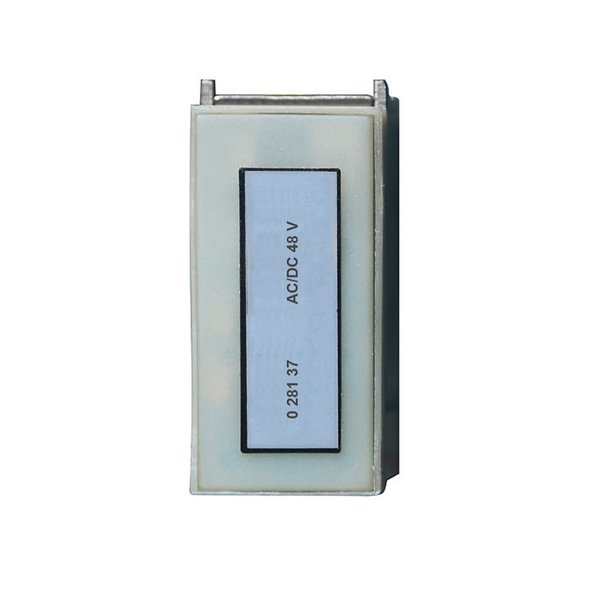

Legrand 028137 — Undercurrent Release. Manufacturer designation: Undercurrent release for DMX³1600 – 48V~ or 48V=. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Legrand |
|---|---|
| Article No. (MPN) | 028137 |
| Product Category | Distribution & Installation |
| Nominal AC supply voltage 50 Hz (Min-Max) | 40.8-52.8V |
| Nominal AC supply voltage 60 Hz (Min-Max) | 40.8-52.8V |
| Nominal DC supply voltage (Min-Max) | 40.8-52.8V |
| Actuation voltage type | AC/DC |
| Electrical connection finishing | Flat pin connection |
| Delayed | No |
| Suitable for circuit breaker | Yes |
| Suitable for switch | Yes |
| Suitable for motor protection switch | Yes |
| Width | 70mm |
| Height | 50mm |
| Depth | 50mm |
| Degree of protection (IP) | IP30 |
| Operating / setting temperature (Min-Max) | -5-70°C |
| Storage temperature (Min-Max) | -40-85°C |
| Pre-wired | No |
| Terminal capacity (Min-Max) | 1-2.5mm² |
| Ean/gtin | 3414970767066 |
| EAN / GTIN | 3414970767066 |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Legrand dealer. All parameters are taken from the official manufacturer documentation.
