Description

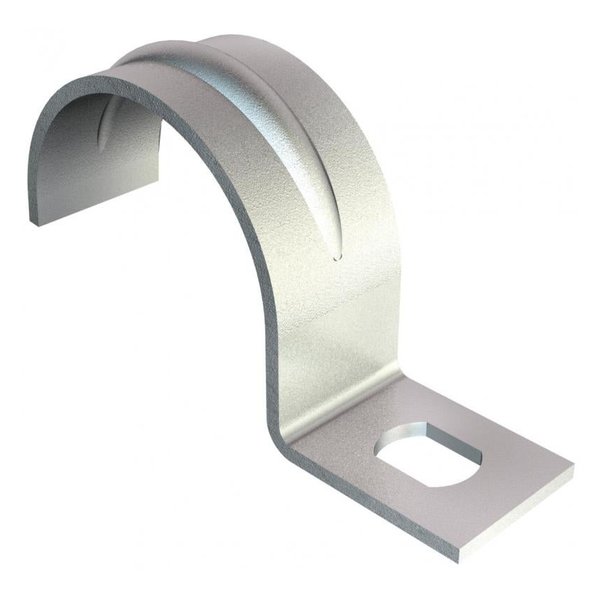

OBO Bettermann 604 32 G — Saddle Clamp. Manufacturer designation: Fastening clip 604, light duty. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 604 32 G |
| Article No. (MPN) | 1003321 |
| Product Category | Cable Support & Routing |
| For diameter | 10 |
| Packaging without plastic | yes |
| Length | 48,82 mm |
| Height | 30 mm |
| Dimension L | 49 mm |
| Dimension A | 8 mm |
| Dimension d | 5,5 mm |
| Dimension H | 30 mm |
| Dimension t | 1,5 mm |
| Dimension b | 15 mm |
| Dimension e | 7 mm |
| Material thickness | 1,5 mm |
| Hole size | 5,5 x 7 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Nominal diameter | 32 mm |
| Distance to the wall | no |
| Version for | Single-lobe |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
