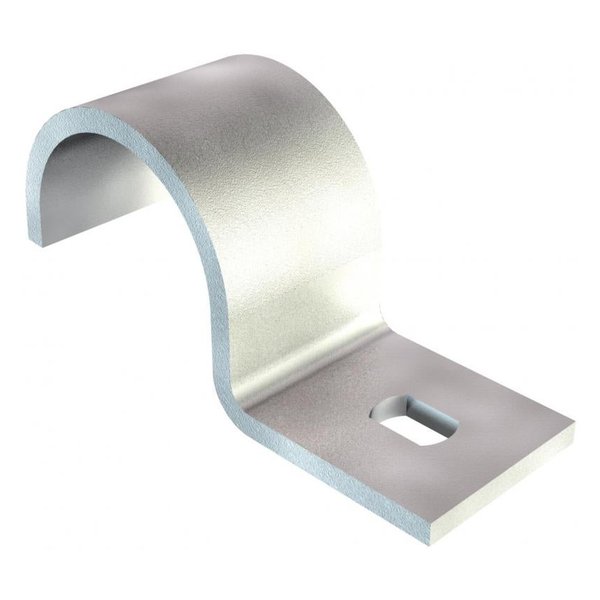

OBO Bettermann 822 28.3 FT — Saddle Clamp. Manufacturer designation: Fastening clip 822, heavy duty, FT. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 822 28.3 FT |
| Article No. (MPN) | 1014218 |
| Product Category | Cable Support & Routing |
| For diameter | 10 |
| Packaging without plastic | yes |
| Length | 60 mm |
| Height | 26,5 mm |
| Dimension L | 27 mm |
| Dimension A | 11 mm |
| Dimension H | 26,5 mm |
| Dimension t | 3 mm |
| Dimension b | 20 mm |
| Dimension L1 | 60 mm |
| Dimension D | 28,3 mm |
| Material thickness | 2 mm |
| Hole size | 6,5 x 10 |
| Halogen-free | yes |
| Size | PG21 |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Nominal diameter | 28,3 mm |
| Distance to the wall | no |
| Condition | New & original |
| Availability | On request |
