Description

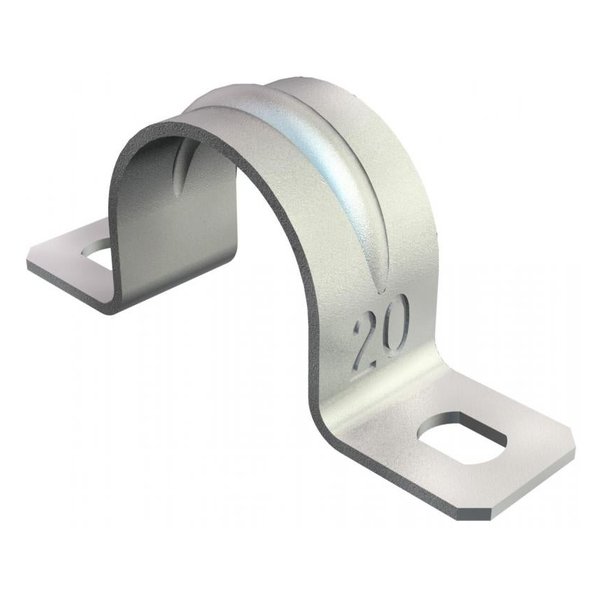

OBO Bettermann 605 17 G — Saddle Clamp. Manufacturer designation: Fastening clip 605, medium duty, G. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 605 17 G |
| Article No. (MPN) | 1018175 |
| Product Category | Cable Support & Routing |
| For diameter | 10 |
| Packaging without plastic | yes |
| Length | 45 mm |
| Height | 15,5 mm |
| Dimension A | 45 mm |
| Dimension d | 4,5 mm |
| Dimension B | 33 mm |
| Dimension H | 15,5 mm |
| Dimension t | 1 mm |
| Dimension e | 6 mm |
| Material thickness | 1 mm |
| Hole size | 4,5 x 6 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Nominal diameter | 17 mm |
| Distance to the wall | no |
| Version for | Two-lobe |
| ROHS-conformant | yes |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
