Description

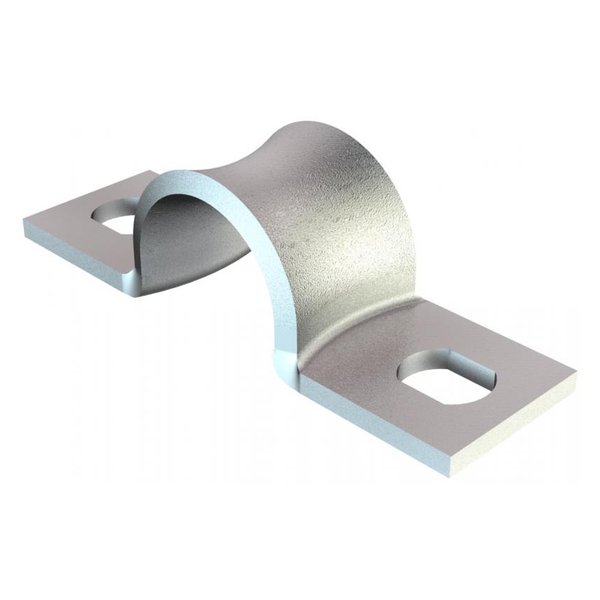

OBO Bettermann WN 7855 B 3 — Saddle Clamp. Manufacturer designation: Fastening clip, plant standard 7855, double-lobe. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | WN 7855 B 3 |
| Article No. (MPN) | 1044044 |
| Product Category | Cable Support & Routing |
| For diameter | 4,5 |
| Packaging without plastic | yes |
| Length | 21 mm |
| Height | 2,5 mm |
| Dimension L | 21 mm |
| Dimension A | 21 mm |
| Dimension d | 3,2 mm |
| Dimension B | 14 mm |
| Dimension H | 2,5 mm |
| Dimension t | 0,8 mm |
| Dimension e | 4 mm |
| Material thickness | 0,8 mm |
| Hole size | 3,2 x 4 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Nominal diameter | 3 mm |
| Distance to the wall | no |
| Version for | Two-lobe |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
