Description

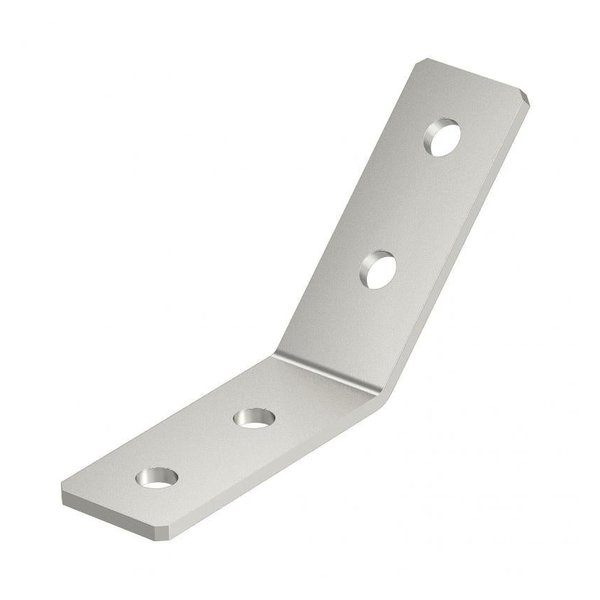

OBO Bettermann GMS 4 VW 45 A4 — Mounting Bracket. Manufacturer designation: Mounting bracket, 45° with 4 holes A4. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | GMS 4 VW 45 A4 |
| Article No. (MPN) | 1124749 |
| Product Category | Cable Support & Routing |
| Packaging without plastic | yes |
| Length | 101 mm |
| Height | 101 mm |
| Rustproof steel, pickled | no |
| Material thickness | 4 mm |
| Hole size | 13 |
| With screw accessories | no |
| Version for | 45° angle |
| Suitable for profile shapes | C profile |
| ROHS-conformant | yes |
| Dimension | 101x101x40x4 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Product series | Rail system |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
