Description

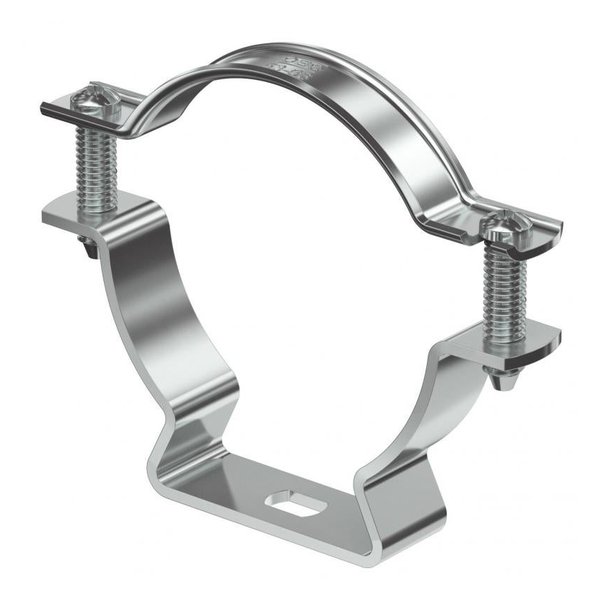

OBO Bettermann ASL 733 63 ALU — Saddle Clamp. Manufacturer designation: Spacer clip 733 ALUn. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | ASL 733 63 ALU |
| Article No. (MPN) | 1362838 |
| Product Category | Cable Support & Routing |
| Material thickness | 1,5 |
| Clamping range D, max. | 10 |
| Material | Aluminium |
| Clamping range D, min. | 10 |
| Packaging without plastic | yes |
| For diameter | 53 – 63 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Distance to the wall | yes |
| Version for | Closed |
| ROHS-conformant | yes |
| Dimension | 53-63mm |
| Product series | 732 / 733 |
| Dimension L | 10 mm |
| Dimension A | 94 mm |
| Dimension B | 80 mm |
| Dimension d max. | 63 mm |
| Dimension d min. | 53 mm |
| Dimension x | 15 mm |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
