Description

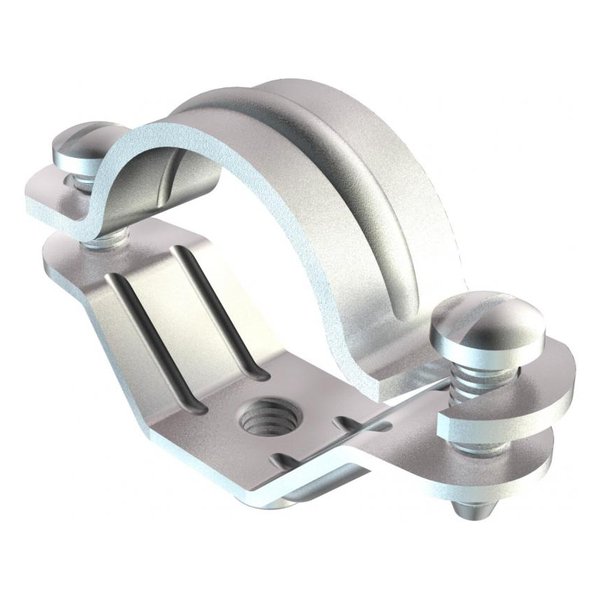

OBO Bettermann 2900 M6 61-64 G — Saddle Clamp. Manufacturer designation: Screw-in spacer clip, universal. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | OBO Bettermann |
|---|---|
| Model / Type | 2900 M6 61-64 G |
| Article No. (MPN) | 1383507 |
| Product Category | Cable Support & Routing |
| Material thickness | 1,5 |
| Hole size | M6 |
| Clamping range D, min. | 13,5 |
| Clamping range D, max. | 16 |
| Surface | Electrogalvanised |
| Material | Steel |
| Packaging without plastic | yes |
| Length | 106,5 mm |
| Dimension L | 106,5 mm |
| Dimension A | 106,5 mm |
| Dimension B | 90,5 mm |
| Dimension H | 6,5 mm |
| Dimension x | 6 mm |
| Dimension t1 (mm) | 2 mm |
| Dimension t2 (mm) | 2 mm |
| Dimension D | 63 mm |
| Halogen-free | no |
| Size | M63 |
| UV-resistant | yes |
| Plastic-covered | no |
| Condition | New & original |
| Availability | On request |
Download official OBO Bettermann datasheet (PDF)
Independent distributor — not an authorised OBO Bettermann dealer. All parameters are taken from the official manufacturer documentation.
